3G SDI Fiber Optic Extender

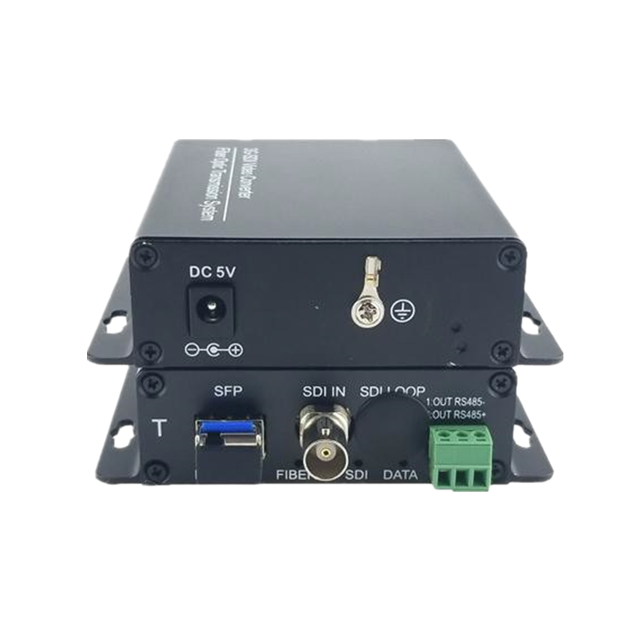

3G SDI-SM-LC-LC 2 Cores Fiber Optic Extender
1) 3G-SDI unit is designed to support LC /PC Optical connector;
2) We can offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical connector.;
3) The Transmission distance Range according to the Optical Budget;
4) Manufacturer's default standard is single mode 20Km ;
Fiber Cable Selection:
Availability:
Quantity:

1.

Features


  • 1 Ch Forward Video of 3G-SDI can be transmitted via single fiber ;

  • The Max rate of work is 3.2Gb/s;

  • Support SMPTE 292M (2.9Gb/s) clock recovery;

  • Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI);

  • Out wavelength range is 1310nm、1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T

  • G.694.2);

  • Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A);

  • LED Status Indication to monitor the working conditions;

  • Video transmission system can support many application branches structure;

  • The SDI video format support:625/25 PAL、525/29.97 NTSC、525/23.98 NTSC、720p50、720p59.94、1080P 23.98/24/30/50/60、1080i 23/24/30/50/59.94.

2.

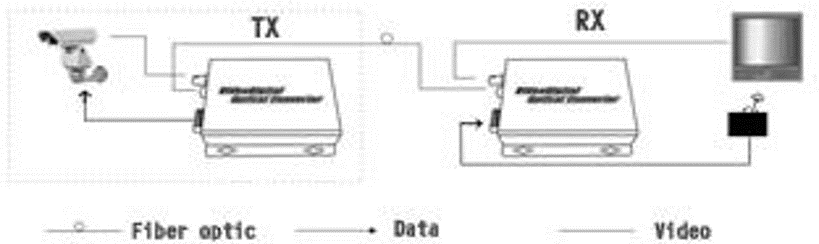

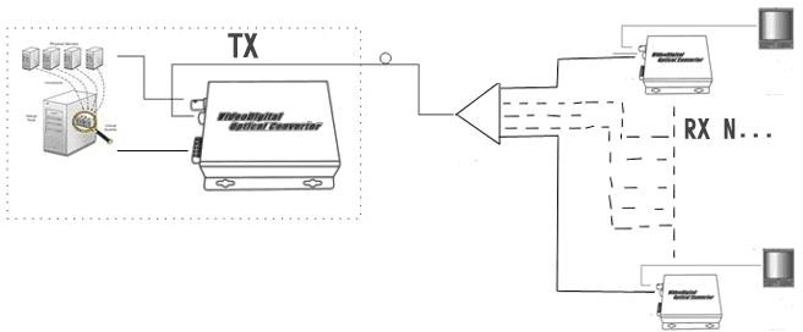

Typical application




3.

Remark


  • The Optical Power Budget fit Single-Mode(9/125 m);

  • Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by

  • connectors, splices and patch panels;

  • Maximum transmission distance is also limited by fiber bandwidth;

  • Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European,        UK or Australian power plug;

  • Please feel free to contact factory for any special requirement and customization.

4. Specifications

  • Number of channels : 1 Ch Forward;

  • Input/out put Connector : BNC 75Ω;

  • Input/output voltage: 1.0 Volt p-p;

  • Video Bits Rate: Max 3.2Gb/s、

  • Video SDI Standards:

    270Mbps(SD-SDI)、1.485Gbps/M(HD-SDI)、

    SMPTE425M3Gb/s Mapping(3G-SDI)、

    SMPTE424M 3Gb/s serial interface(3G-SDI).



5. Fiber Optic

  • Number of Optical port : 1;

  • Connector : Simplex LC

    Single-mode 20Km;

  • Single-mode:1310/1550nm (Option);

               6. Connectors

  • Video : BNC 75Ω;

  • Fiber Optical : Simplex LC ;

  • Stand-alone power: DC JACK ;

  • Rack power: AC line cord.


          7. Electrical & Mechanical

  • Power adaptor : AC 100-240V to DC 5V 2A

  • Power consumption : <3W

                       8. Environmental

  • Operating Temperature : - 5C~+75 C

  • Storage Temperature : - 5 C~+85 C

  • Relative Humidity : 0%~95% (non-condensing) MTBF : >100,000 hours


9.

Order Information


  • HL-3GSDI-1V1D-T/RL-SM:1 x 3G-SDI forward video with embedded audio + 1 x return RS485 data,SM LC;

Note: 1.Power supply provided by user or ordered additionally 2.LC connector as default, SC/ST/FC as request
