Product Features:
1.Standard 2K (1920*1080) high-definition picture, global ultra-thin design (35mm), color saturation more than 97%, fine quality(visual effect), low-brightness but high-gray effect, 8-level brightness freely adjustable.
2.The world's first 110-inch or more networked live TV with Android 8.0 system, rich APP, powerful expansion, support U disk hot swap, plug and play, easy to operate.
3.The system is equipped with quad-core CPU, ultra-high performance GPU, 3G large memory, 32G storage (expandable), fast processing speed, smooth video playback and high synchronization.
4.Support wireless projection, multi-screen networking interaction, one screen and multiple display, support remote control operation of remote control, mobile phone, tablet and other intelligent terminals.
5.Support wireless projection, multi-screen networking interaction, one screen and multiple display, support remote control operation of remote control, mobile phone, tablet and other intelligent terminals.
6.Support remote video conferencing function, can meet multiple video windows, refresh above 2880Hz, can be applied to broadcast-level photography.
7.User-level installation and maintenance, no need for secondary renovation, no need for rear maintenance access, no steel structure, easy on-site construction, support for wall mounting or mobile vertical installation.
8.One power cable, one-button switch, remote control, intelligent terminal control, easy and convenient.

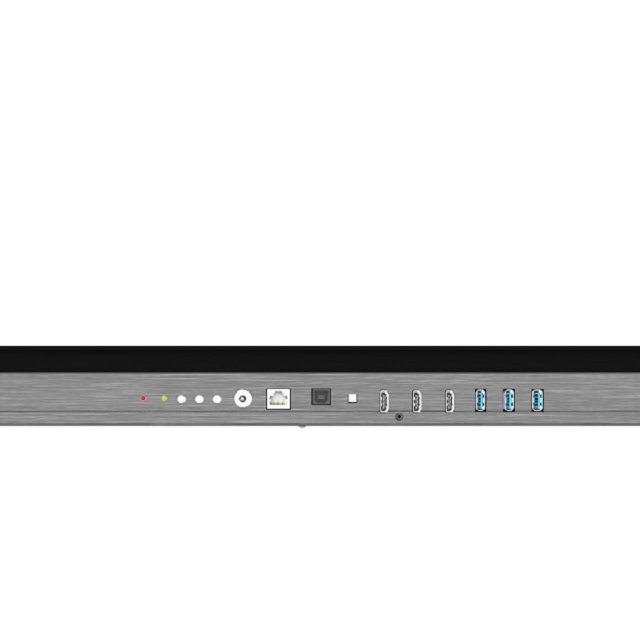

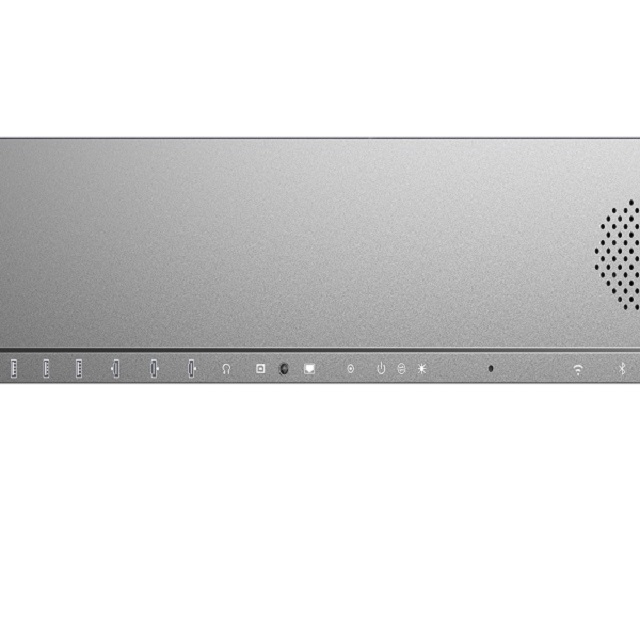

9.Rich interface compatibility: USB interface, HDMI input and output, RJ45 network port, RF input, infrared remote control, etc., support WiFi, Bluetooth, 4G network, Ethernet multiple network transmission methods.
Specification | X-Board108” | X-Board135” | X-Board163” | X-Board216” | |
small size conference room | medium size conference room | medium-large size conference room | large size conference room | ||
Pixel Pitch（ mm） | 1.25 | 1.56 | 1.875 | 2.5 | |
Resolution (dots) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | |
Display size( mm) | 2400*1350*35 | 3000*1687.5*35 | 3600*2025*35 | 4800*2700*35 | |
Panel total weight (kg) | 88 | 135 | 192 | 340 | |
Color Depth (Bit) | 14 | 14 | 14 | 14 | |
Gray Scale | 16384 | 16384 | 16384 | 16384 | |
Refresh Rate（ Hz） | 2880 | 2880 | 2880 | 2880 | |
Brightness（ nit） | 600-1000（adjustable） | 600-1000（adjustable） | 600-1000（adjustable） | 600-1000（adjustable） | |
Viewing angle（ H/V°） | H/160° V/160° | H/160° V/160° | H/160° V/160° | H/160° V/160° | |
Video interface | HDMIx3（2 in 1 out），USB 3.0x1， USB 2.0x2，RF x1 | ||||
Control interface | RJ45x1、TOUCH-USBx1、bluetooth，WIFI、RF | ||||
Avg. Power | 655 | 1120 | 1580 | 2720 | |
LED Lifetime(hrs） | ≥100000 | ≥100000 | ≥100000 | ≥100000 | |
Maintenance Method | Wall mounting/ground stacking and front maintenance | Wall mounting/ground stacking and front maintenance | Wall mounting/ground stacking and front maintenance | Wall mounting and front maintenance | |
Product Features:
1.Standard 2K (1920*1080) high-definition picture, global ultra-thin design (35mm), color saturation more than 97%, fine quality(visual effect), low-brightness but high-gray effect, 8-level brightness freely adjustable.
2.The world's first 110-inch or more networked live TV with Android 8.0 system, rich APP, powerful expansion, support U disk hot swap, plug and play, easy to operate.
3.The system is equipped with quad-core CPU, ultra-high performance GPU, 3G large memory, 32G storage (expandable), fast processing speed, smooth video playback and high synchronization.
4.Support wireless projection, multi-screen networking interaction, one screen and multiple display, support remote control operation of remote control, mobile phone, tablet and other intelligent terminals.
5.Support wireless projection, multi-screen networking interaction, one screen and multiple display, support remote control operation of remote control, mobile phone, tablet and other intelligent terminals.
6.Support remote video conferencing function, can meet multiple video windows, refresh above 2880Hz, can be applied to broadcast-level photography.
7.User-level installation and maintenance, no need for secondary renovation, no need for rear maintenance access, no steel structure, easy on-site construction, support for wall mounting or mobile vertical installation.
8.One power cable, one-button switch, remote control, intelligent terminal control, easy and convenient.
9.Rich interface compatibility: USB interface, HDMI input and output, RJ45 network port, RF input, infrared remote control, etc., support WiFi, Bluetooth, 4G network, Ethernet multiple network transmission methods.
Specification | X-Board108” | X-Board135” | X-Board163” | X-Board216” | |
small size conference room | medium size conference room | medium-large size conference room | large size conference room | ||
Pixel Pitch（ mm） | 1.25 | 1.56 | 1.875 | 2.5 | |
Resolution (dots) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | |
Display size( mm) | 2400*1350*35 | 3000*1687.5*35 | 3600*2025*35 | 4800*2700*35 | |
Panel total weight (kg) | 88 | 135 | 192 | 340 | |
Color Depth (Bit) | 14 | 14 | 14 | 14 | |
Gray Scale | 16384 | 16384 | 16384 | 16384 | |
Refresh Rate（ Hz） | 2880 | 2880 | 2880 | 2880 | |
Brightness（ nit） | 600-1000（adjustable） | 600-1000（adjustable） | 600-1000（adjustable） | 600-1000（adjustable） | |
Viewing angle（ H/V°） | H/160° V/160° | H/160° V/160° | H/160° V/160° | H/160° V/160° | |
Video interface | HDMIx3（2 in 1 out），USB 3.0x1， USB 2.0x2，RF x1 | ||||
Control interface | RJ45x1、TOUCH-USBx1、bluetooth，WIFI、RF | ||||
Avg. Power | 655 | 1120 | 1580 | 2720 | |
LED Lifetime(hrs） | ≥100000 | ≥100000 | ≥100000 | ≥100000 | |
Maintenance Method | Wall mounting/ground stacking and front maintenance | Wall mounting/ground stacking and front maintenance | Wall mounting/ground stacking and front maintenance | Wall mounting and front maintenance | |
