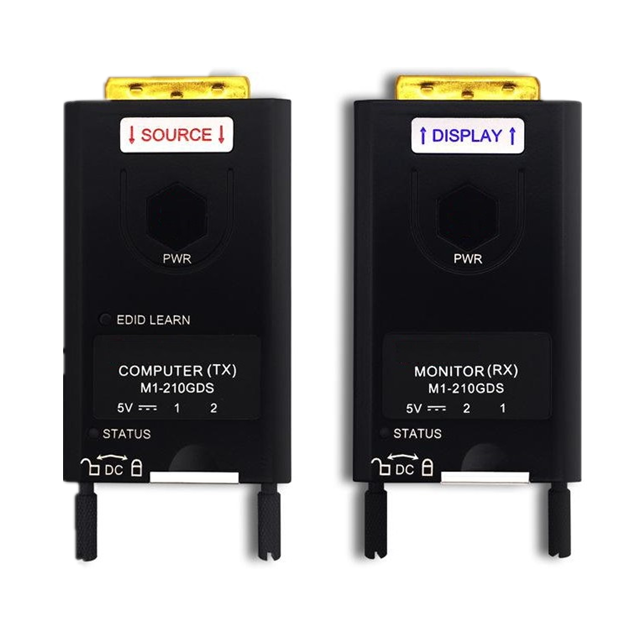

DVI Fiber Optic Extender-M1-210GDS

M1-210GDS-SM/MM-LC-LC 2 Cores Fiber Optic Extender
1) Develop customized products for the rental industry.
2) Support singlelink DVI standard;
3) Two-core wavelength division multiplexing technology can output one DVI signal through two-channel single mode or
multi-mode OM3 fiber.
4) 2 LC type optical fiber connectors. Compact shell design (multiple side by side access matrix card).
5) Support for built-in EDID simulation and EDID learning.
6) Support optical fiber interface dust proof.
7) Support power socket with lock.
8) Support EDID external learning button.
9) Indicator light for signal connection /EDID learning/power supply,
10) Working wavelength: 850;1310;1550 nm.
11) Support single side power supply technology can be supplied from matrix DVI port.
12) Zero frame delay. Supports 50/125 OM3 optical fiber 500M,9/125 single-mode optical fiber 1500M.
13) Improved electrostatic protection function.
