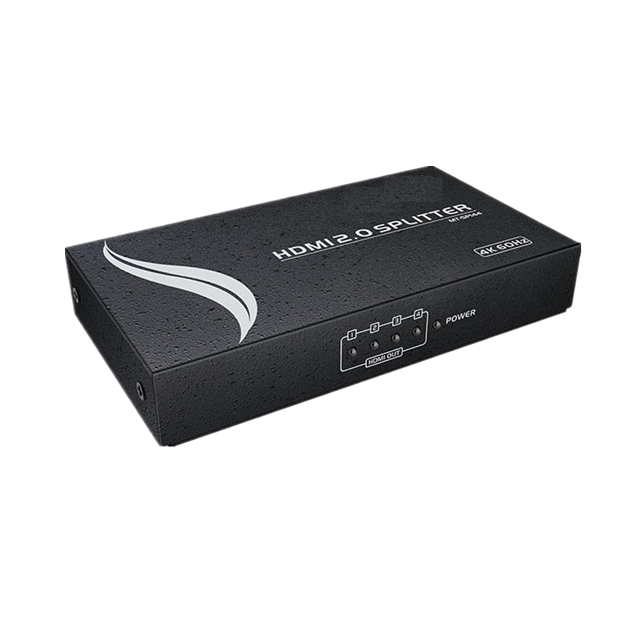

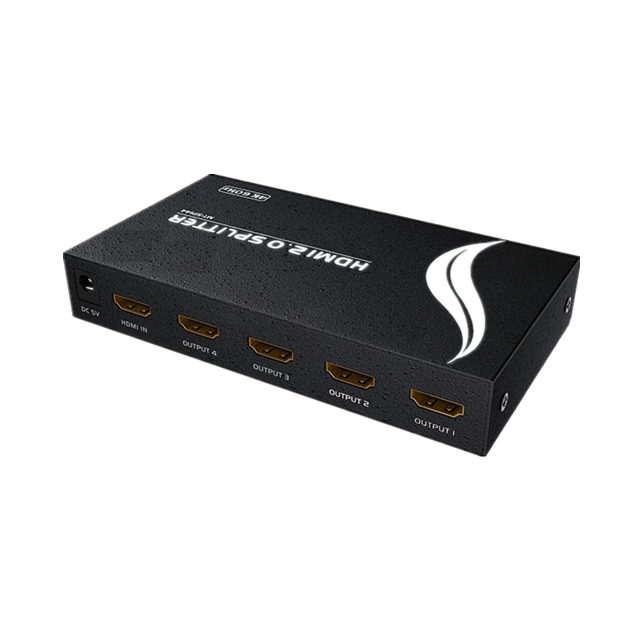

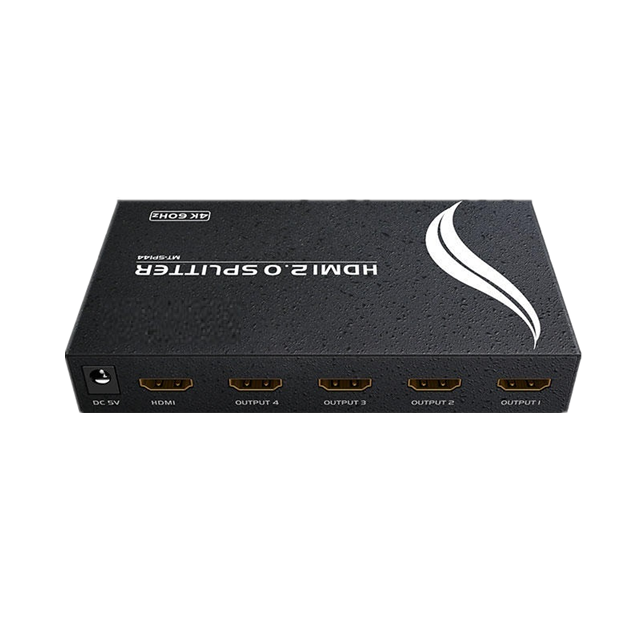

HDMI 2.0 1-2&4&8 Dstributor-M

HDMI 2.0 1-2&4&8 Dstributor-M
This product has the highest resolution (4K @60hz (4:4:4)) and can allocate 1-channel HDMI signal into multi-channel synchronous HDMI signal output.Supports 4K @60hz resolution allocation, amplifies output synchronization signals, and supports the use of cascade to significantly increase the number of HDMI output ports.
Model:
MT-SP142 HDMI1-2
MT-SP144 HDMI1-4
MT-SP148 HDMI1-8
Availability:
Quantity:
Inquire Add to Basket

1.

Features

  • Can output a group of HDMI signals to 2/4/8-channel HDMI display device;

  • HDMI(3D, color depth 4K);Compatible with HDCP2.2 standard;

  • Support the HDR;

  • Supports maximum resolution up to 4096*2160/3840* 2160@60hz (4:4:4);

  • Maximum frequency up to 600MHz;

  • Maximum data rate up to 18Gbps(6 Gbps/channels)

2.

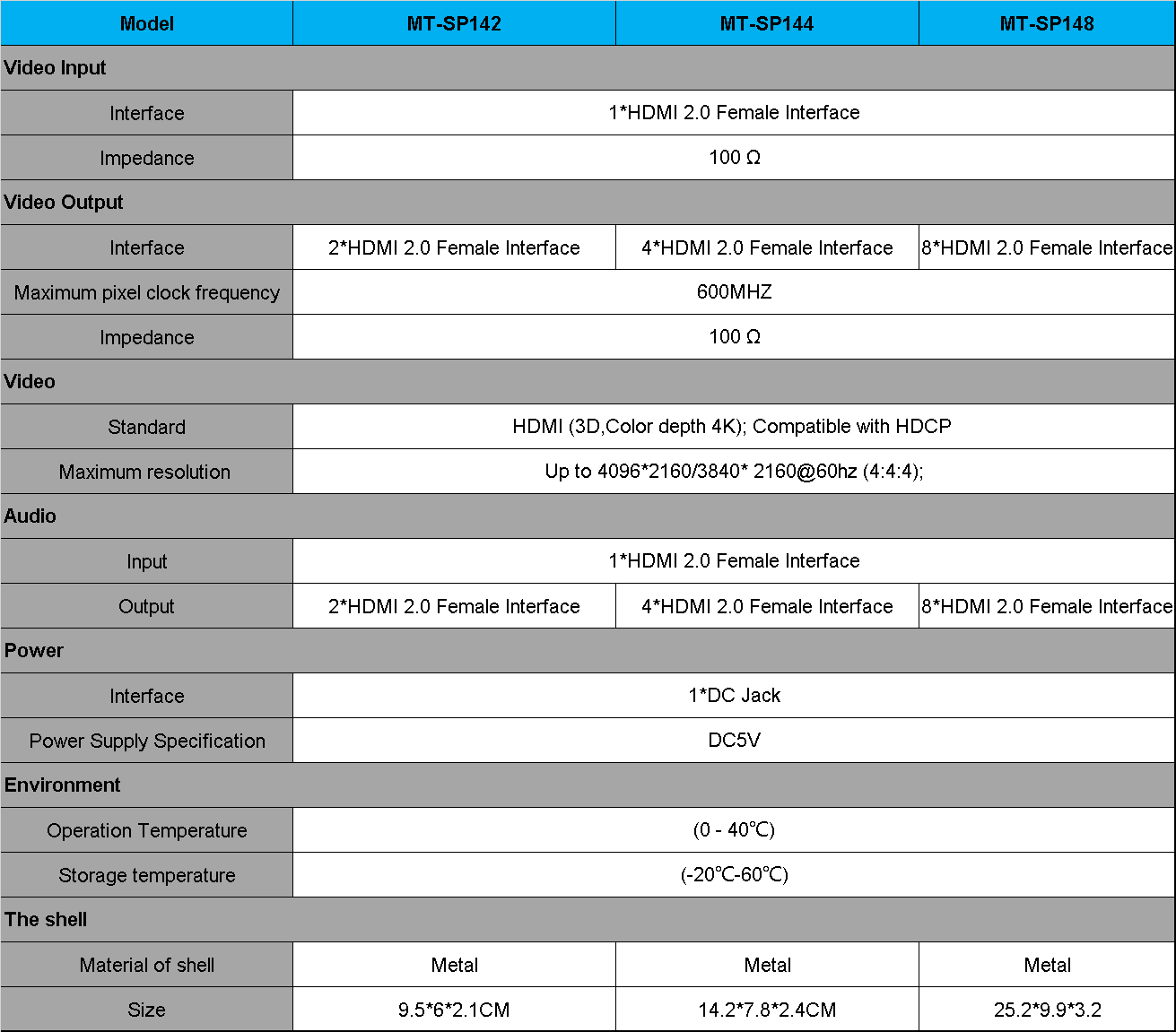

Specifications

微信图片_20200302170314

3.

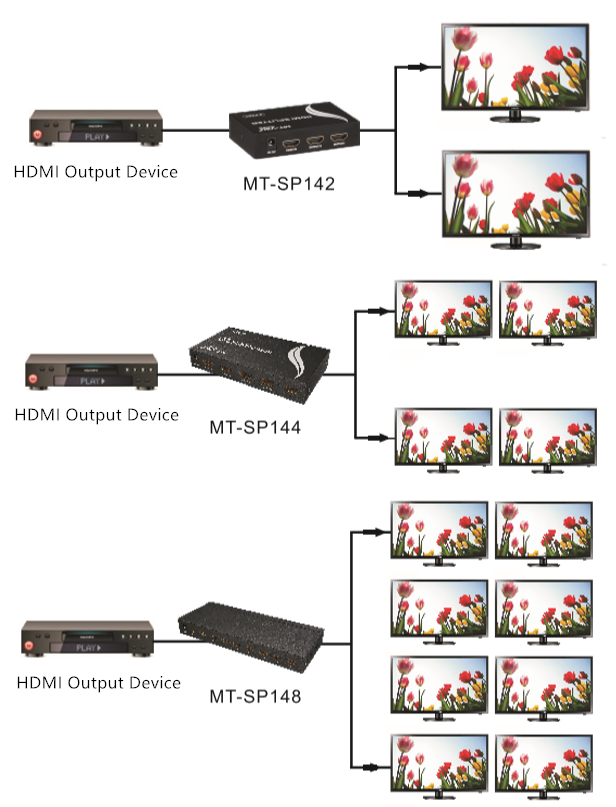

Connection diagram

                       微信图片_20200302153819
