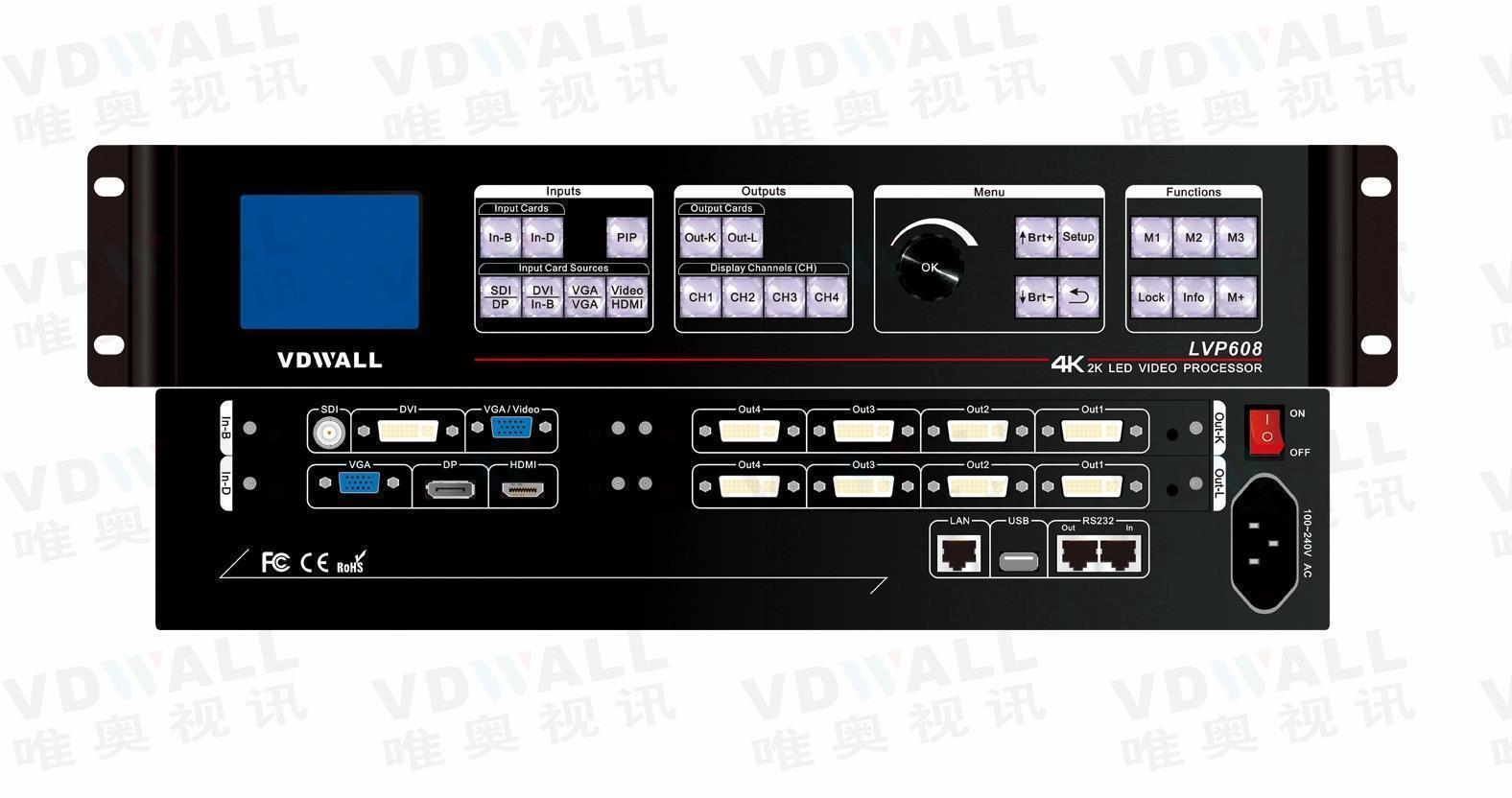

LVP608
Fixed

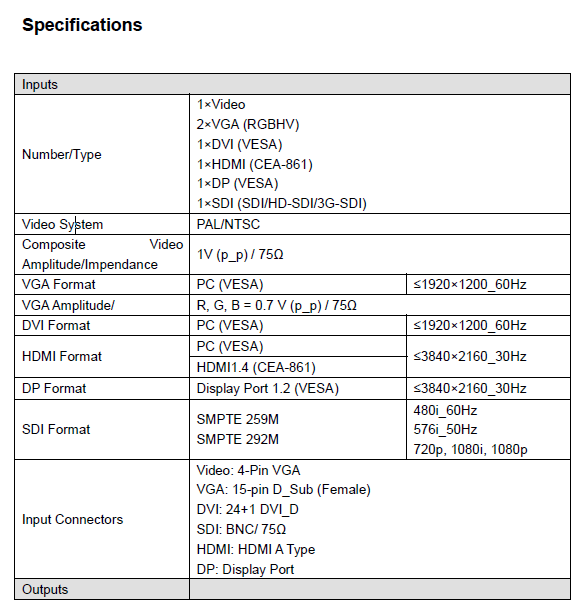

Inputs: 1x Video; 2x VGA; 1x DVI; 1x SDI; 1x DP1.2; 1x HDMI1.4;

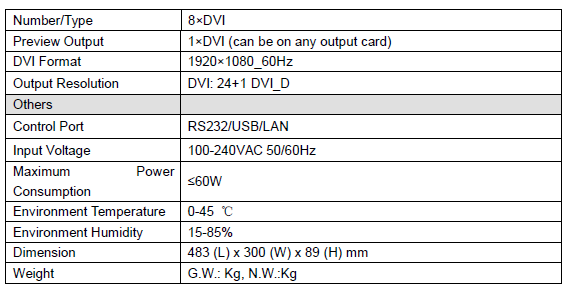

Outputs: 8 X DVI; Single DVI output resolution:1920*1080_60Hz;
Pixel-by-pixel synchronous mosaic; HDMI and DP support
4K2K_30Hz inputs: a 4K input will be processed by the internal
multiplier and split in 4 outputs and resolution of each output is
1920x1080_60; No need of complicated software settings;
Zoom mosaic: image can be zoomed by 2 times; HDMI and DP
support 4K2K_30Hz inputs: a 4K input will be processed by the
internal multiplier and split in 8 outputs and resolution of each output
is 1920x1080_60; No need of complicated software settings;
A roaming window can be opened on a 4K2K ultra HD background
picture;
State-of-the-art motion adaptive de-interlacing technology: to
eliminate trailing or jaggies of motion pictures;
Adopting crosspoint high bandwidth and high date rate transmission
technology
Transition effects between any signals: cut or fade;
Text or image overlay; AIAO(Any In Any Out) allows for cropping and
scaling any size input to any size output;
Convenient panel / RS232 / USB / LAN control and setup
