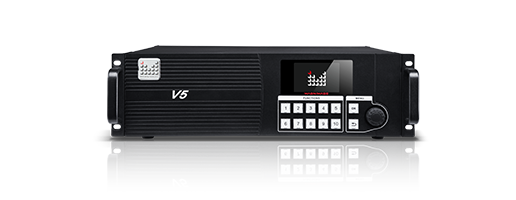

MIG-V5 is the latest Magnimage high performance video seamless switcher, using a large storage FPGA hardware structure with high speed digital bus matrix.
All processing is based around a RGB 24bits/60Hz high performance zoom core. The MIG-V5 supports multiple output screens with seamless splicing. It gives the user significant control over the image parameters and ensures the output signal is fully synchronous with extremely low latency (ideal for live work). Every input can be scaled, cropped and keyed, with 16 layers/PiPs to create the final output content. It adopts a mixed matrix input, with various 4k & 2k customisable module options.

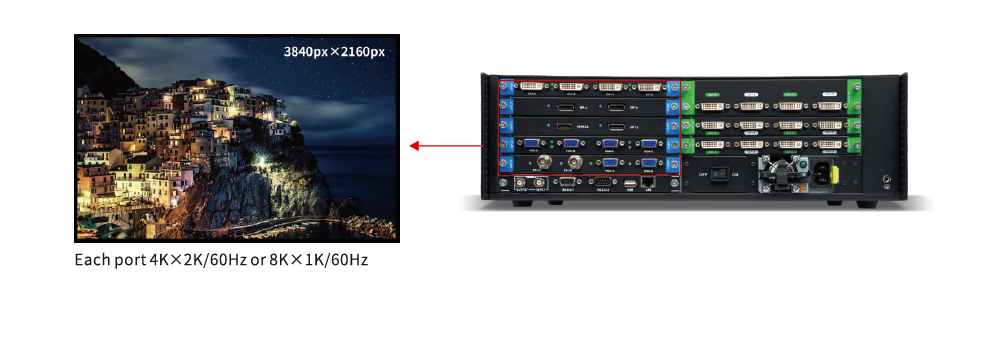

The processor supports full 4k x 2k/60Hz 4:4:4 input, 8k x 1k/60Hz input and real time preview of the input and output signal via multiview preview output.
There are 4 options to control the MIG V5, all direct over IP:
- PC using the advanced software.
- PC using the advanced software and the EXK200 Controller/TBar Keyboard.
- H6 Touchscreen Console.
- H8 Dual Touchscreen Console.
All of these options can realise full fade-in/out switching from multiple layers and scenes delivering exceptional control and programmability.

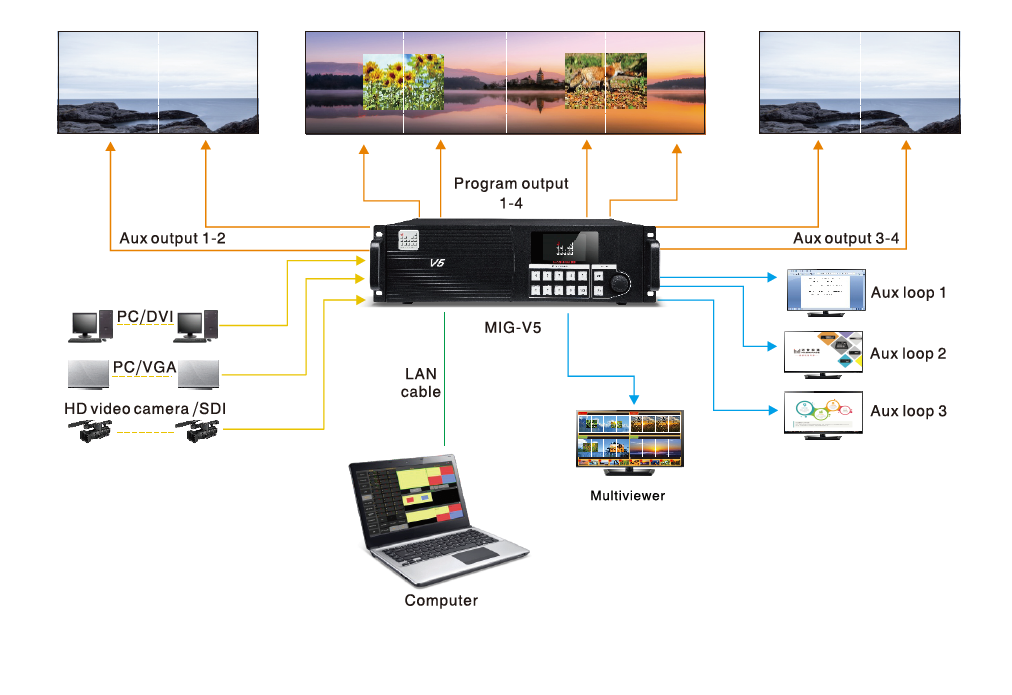

Video outputs:
(Quad 1080p - 4K Capable)

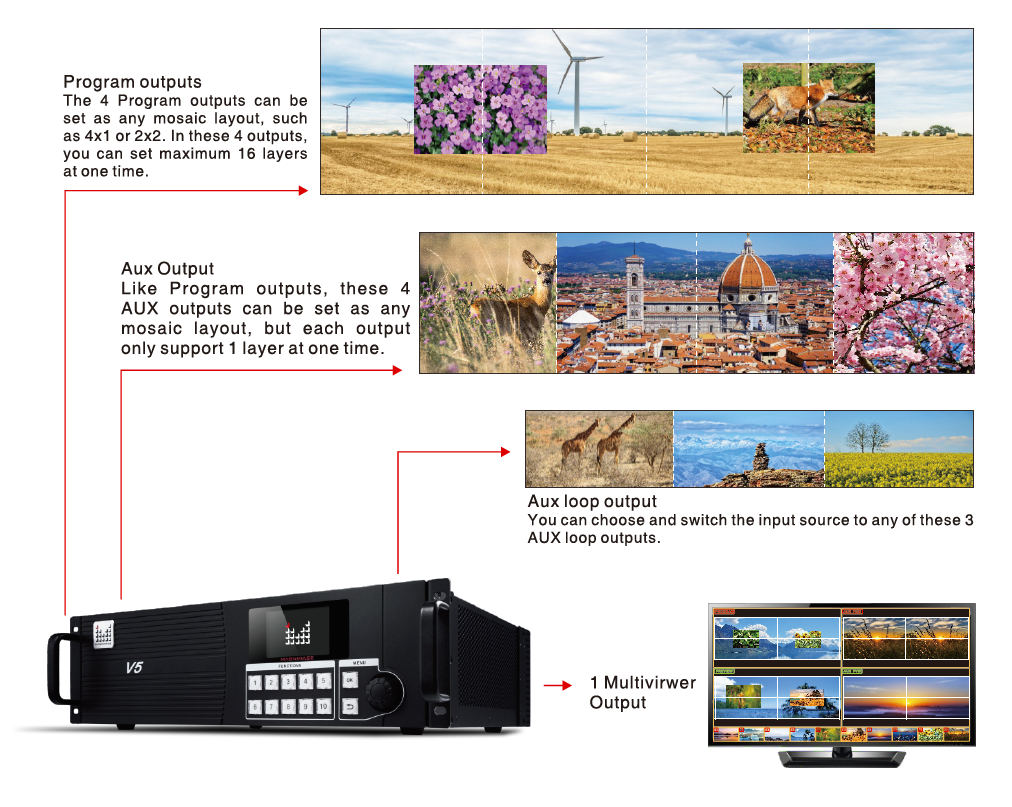

4 Program outputs (DVI Ports/ support 1920x1080/60Hz)
4 AUX outputs (DVI Ports/support 1920x1080/60Hz) - (Aux and Program output can be used simultansouly for a 8 screen canvas)
3 AUX loop outputs (DVI ports/support 1920x1080/60Hz)
1 Multiviewer output (DVI Ports/support 1920x1080/60Hz)
Video inputs:
5 Customisable Input Cards:
Options from DP, SDI, DVI, HDMI, VGA, etc. - customised to suit your requirements - full resolution 4K60 capable
Product specification:
Power supply: 100-240V AC 50/60Hz
Net weight: 10.6kg
Product dimension (L x W x H): 482.6x371x133mm
