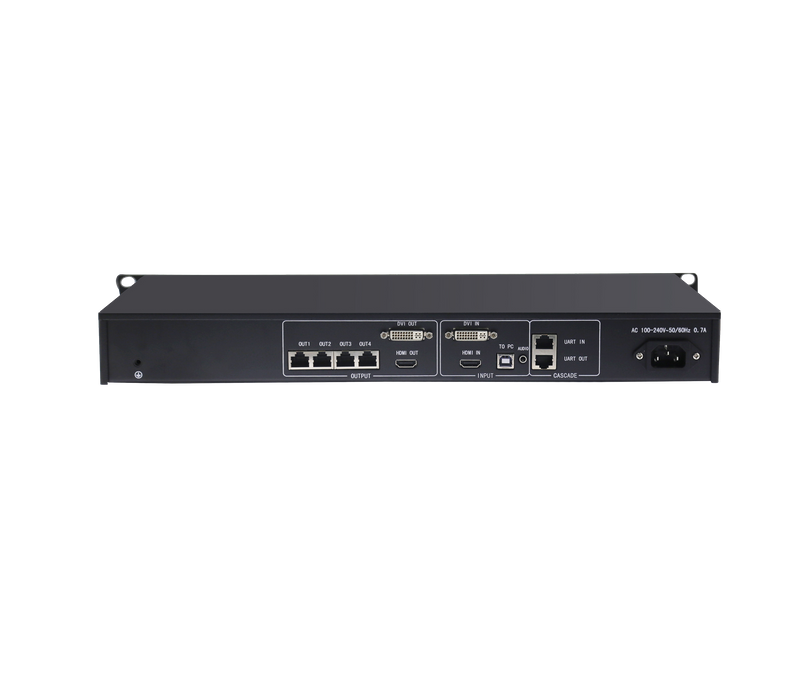

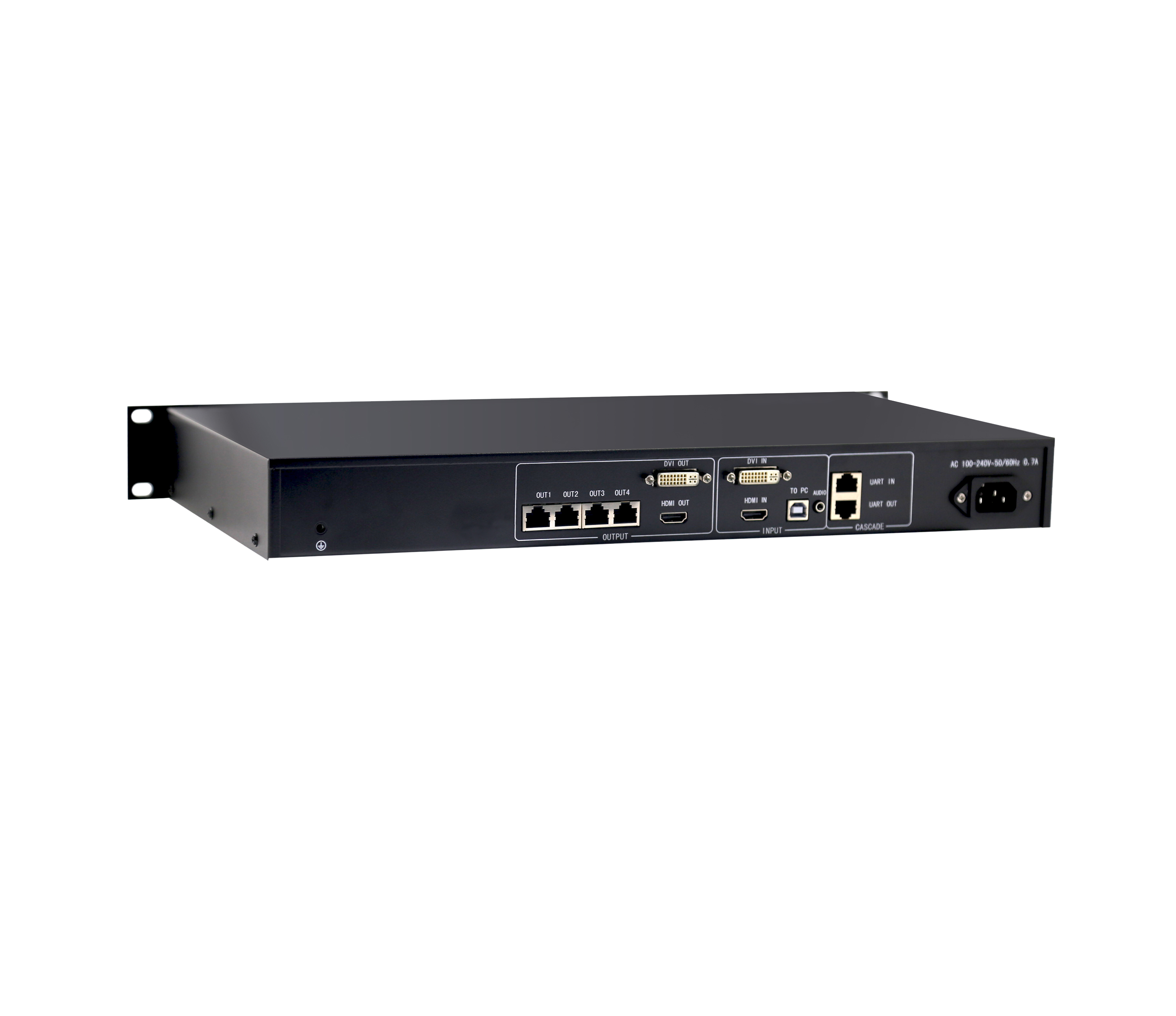

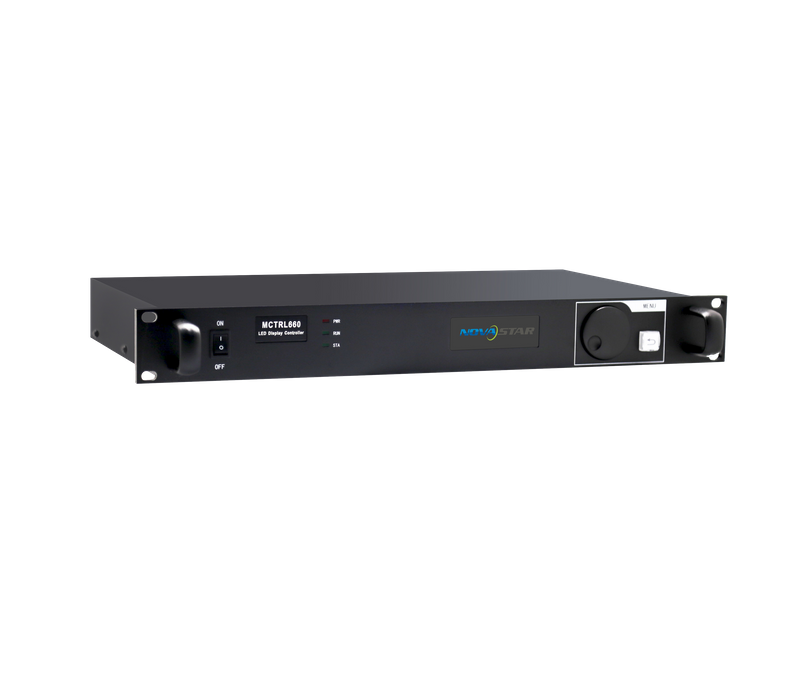

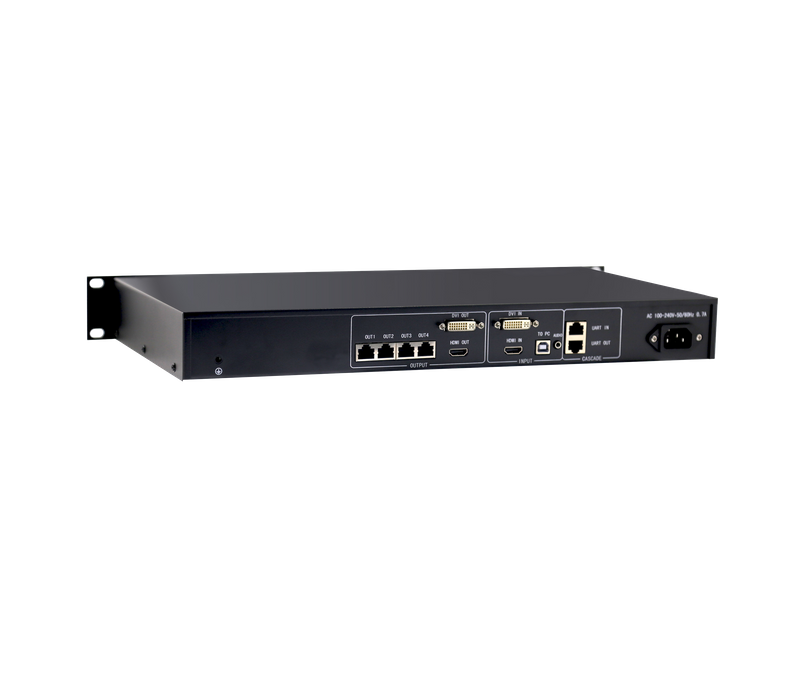

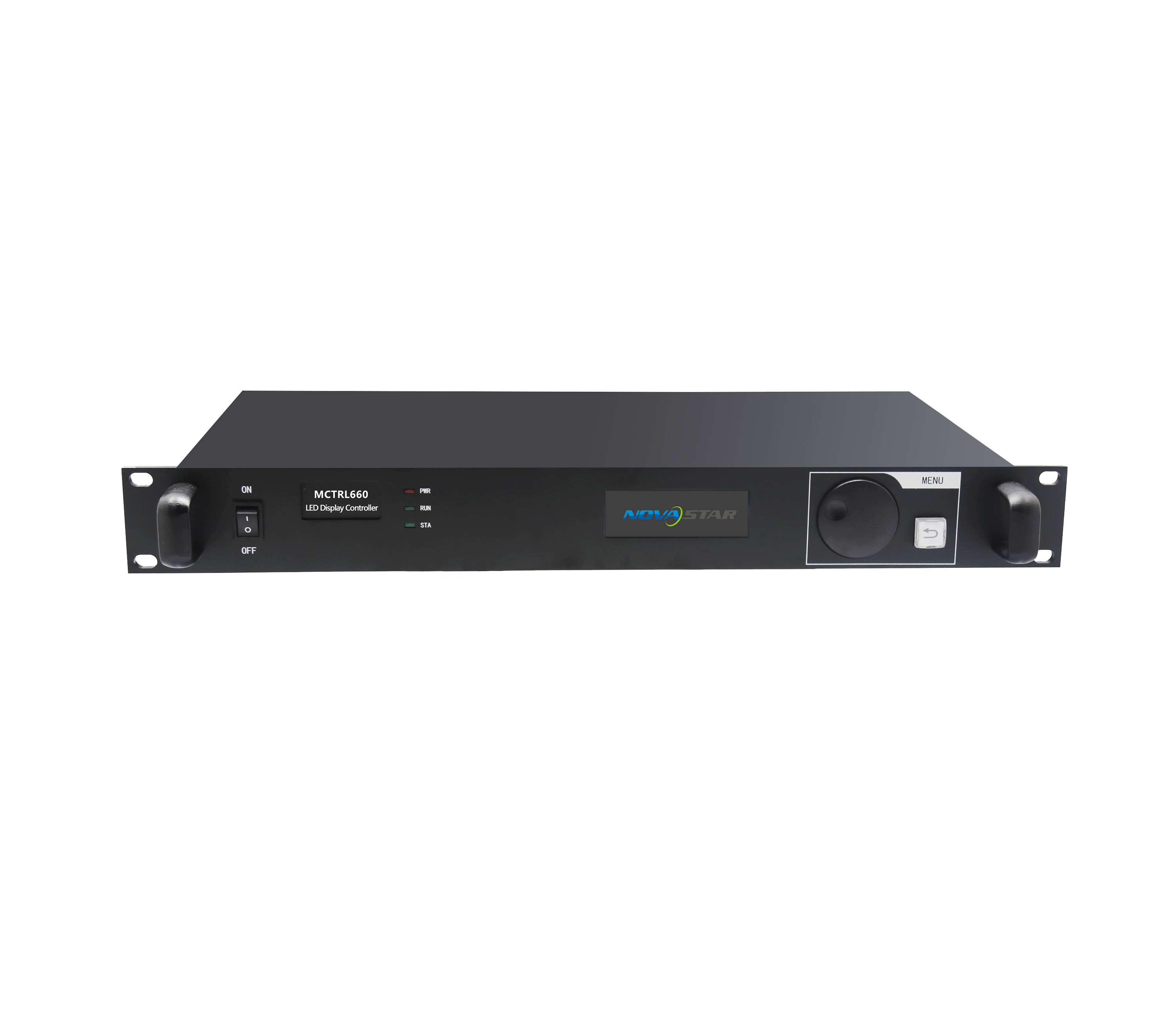

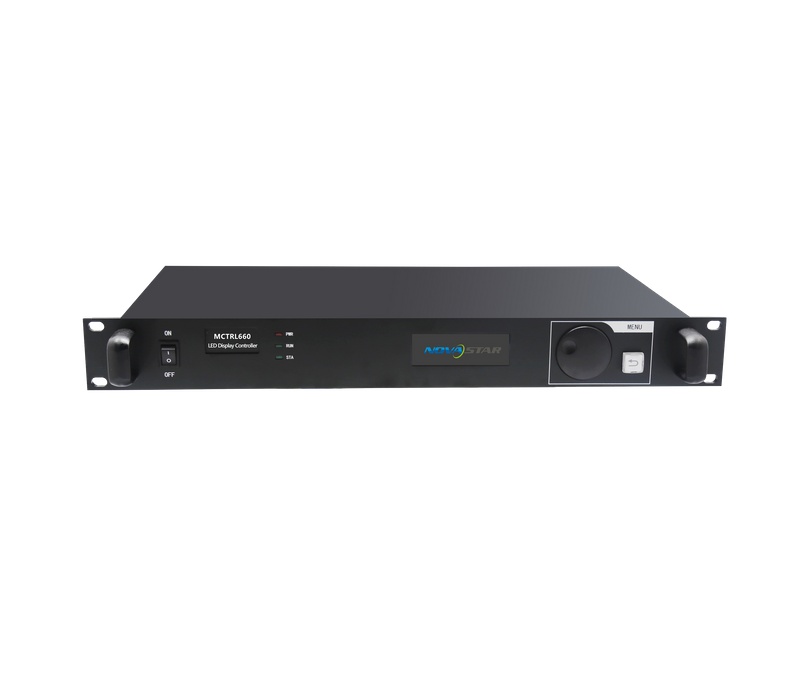

NovaStar MCTRL660 LED Controller

LED Controller MCTRL660 The MCTRL660 is an independent controller of Nova Technology. It is mainly used in the display rental industry. It adopts innovative architecture to realize intelligent configuration. Screen configuration can be completed in 30 seconds. Mctrl660 is also the first product which has mini lcd screen of Novastar
Availability:

1) Screen connection configurable without PC

2) Screen brightness adjustable directly with knob

3) 12-bit/10-bit HDMI input, DVI input.

4) HDMI/DVI output, for the cascade or monitor.

5) HDMI/external audio input.

6) 4 Ethernet port outputs;

7) Capacity: 2.3 million pixels;

8) HDCP Blu-Ray input.

9) Resolution supported: 2048×1152, 1920×1200, 2560×960.(8-bit)

10) Resolution supported: 1440×900.(12-bit/10-bit)

11) 1 light sensor interface, for auto brightness adjustment.

12) Cascading supported

13) 18-bit gray-sale processing and presentation

14) Video formats: RGB, YCrCb4:2:2, YCrCb4:4:4.

13. Independent power supply.
