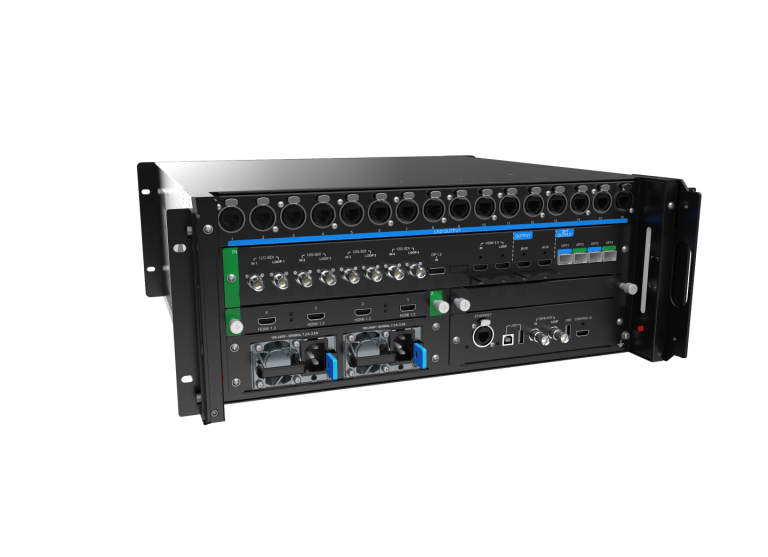

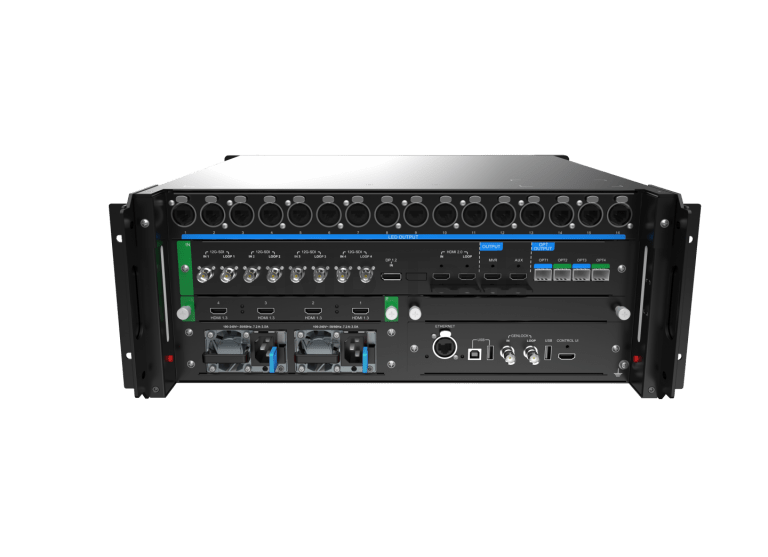

1) A variety of input connectors: 4 × 12G-SDI connectors with loop output functions, 1 × HDMI 2.0 with loop output function, and 1 × DP 1.2;
2) 1 × replaceable input card with four connectors Input card can be DVI or HDMI (default);
3) 16 × Neutrik Ethernet ports and 4 × optical fiber output connectors The loading capacity can be up to 8.8 million pixels;
4) 6 × layers, 1 × OSD, 1 × LOGO, and 1 × BKG;
5) 2 × layers up to 4K×2K, 4 × layers up to 2K×1K Layer scaling supported;
6) OSD supports 4K×2K resolution, cropping, opacity, dynamic/static images and position settings;
7) Layer opacity adjustment, irregular layers, layer mask, and layer copying, mirroring and flipping supported;
8) Layer priority adjustment by z-order;
9) Up to 8K output width or height of a single device;
10) MultiViewer settings;
11) Set to monitor input sources, PVW, PGM, or perform mixed monitoring;
12) 16 × Neutrik Ethernet outputs, 4 × 10G fiber optical outputs with copy and hot backup modes;
13) Quick and advanced screen configurations;
14) With the built-in smart platform Master VI, LED screen configuration and layer configuration can be easily performed via the connected mouse, keyboard and;
15) 10-bit processing of the input source;
16) HDR function to make images finer and smoother;
17) Low-latency output Approximately 3-frame delay from the input to receiving card;
18) Remote data transmission via a Gigabit Ethernet port or fiber optical connector.
