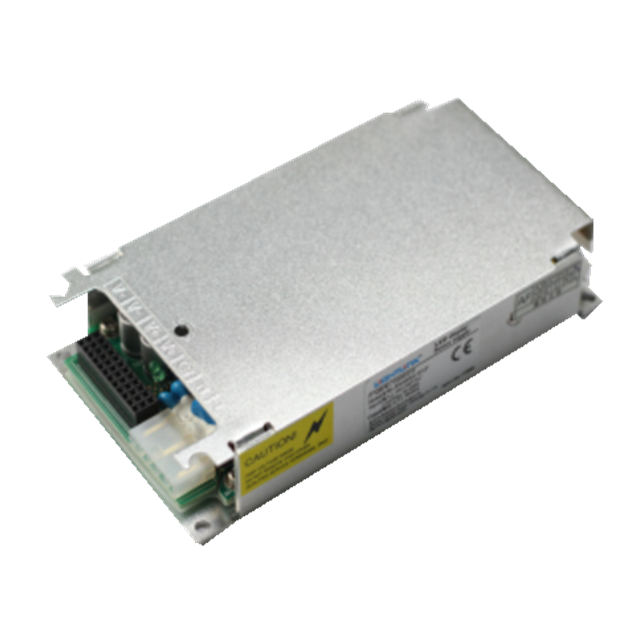

JPS200P4.5V-F
JPS200P4.5V-F
Power：180W Max
Leak Current：<1mA(Vin:230)
Working Temperature：-30℃~60℃
Cooling Method：Self Cooling
Storage Temperature：-40~80℃
Input Voltage：100-240Vac,47-63Hz
Insulation Voltage：I/P-O/P:3.0KVac;I/P-FG:1.5KVac;O/P-FG:0.5KVac
Safety Standard：GB4943,EN60950
Protection Function：Input undervoltage, overload protection, short circuit protection
Power Factor：0.95@230Vac
Dimension：L×W×H=145×78×26 MM
