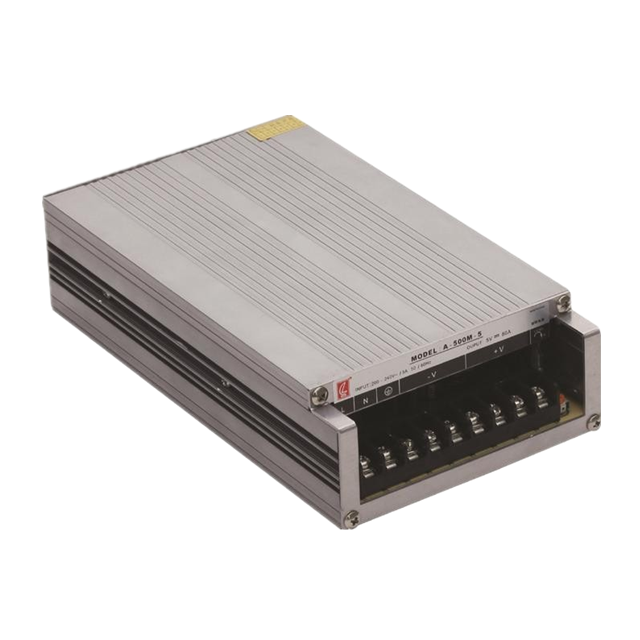

Switching Power Supply A-500M-5

CZCL 5V 80A 400W A-500M-5 Switching Power Supply

Low cost-high reliability

Built-in EMI filter

Low output ripple&noise

Protections Over load/Short circuit

Forced air cooling by Built-in DC fan

1 year warranty

CASE:812; Size:205×114×50mm

AC input voltage range————-176~264VAC/47~63HZ

Input frequency——————–47-63Hz

AC inrush current——————-Cold start 40A/230VAC

DC adjustment range—————-±10% rated output voltage

Line regulation（full load）———–≤0.5%

Output over load protection———110%-150% shut off, AC recycle to re-start

Rise hold up time——————-50mS 20mS at full load（typical）

Withstand voltage——————-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG,0.5KVAC,1min

Working temperature——————10~+40C@ 100% +60C@ 60% load

Storage temperature—————-  -20C~+85C 20%~95%RH(non condensing)

Safety standards———————Design refer to GB4943 UL60950-1,EN60950-1

EMC standards—————— —–Design refer to GB9254 EN55022 class A

Cooling method———————– Forced air cooling by Built-in DC fan
