HSP-300-5
Description

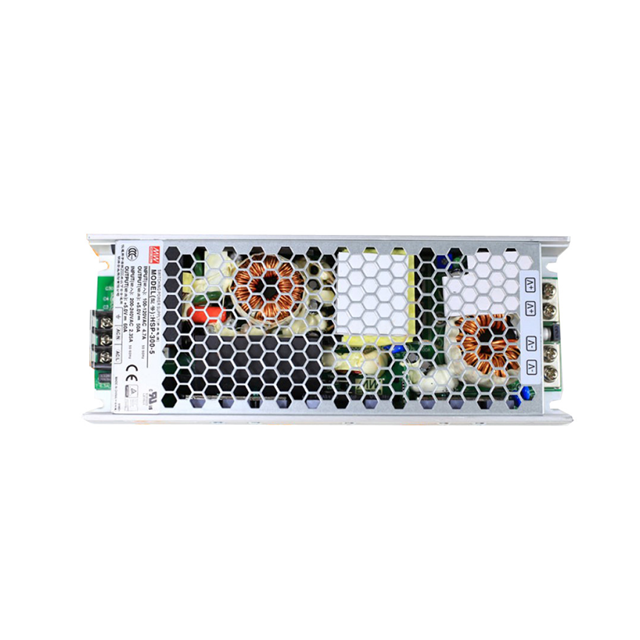

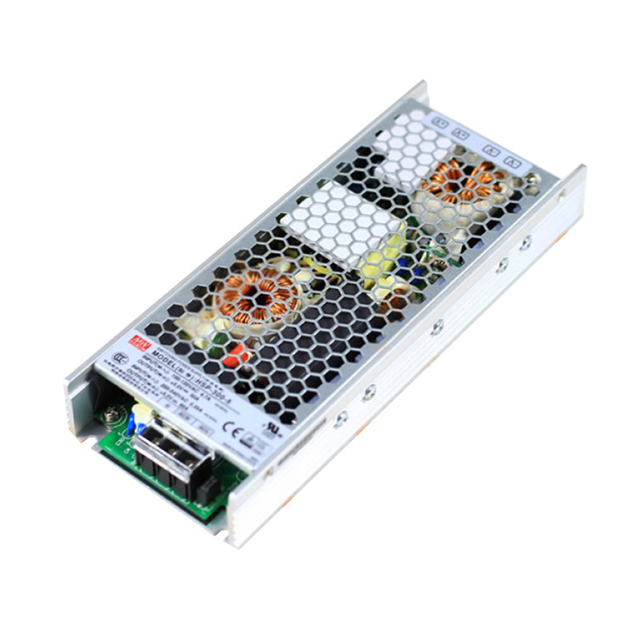

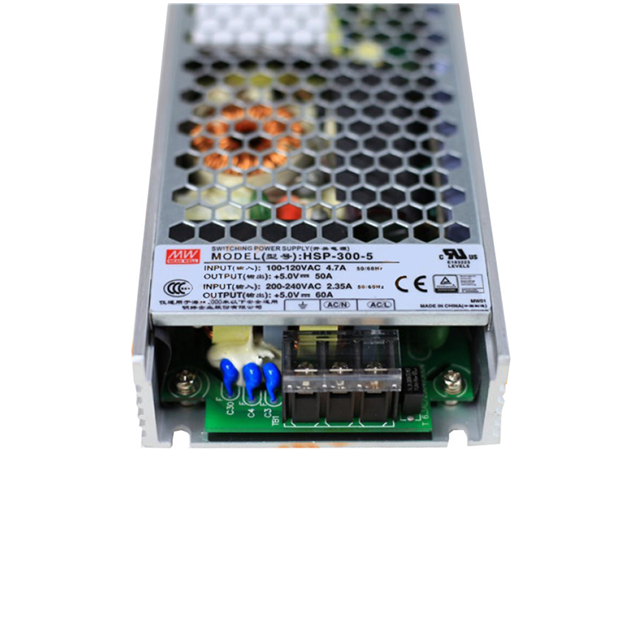

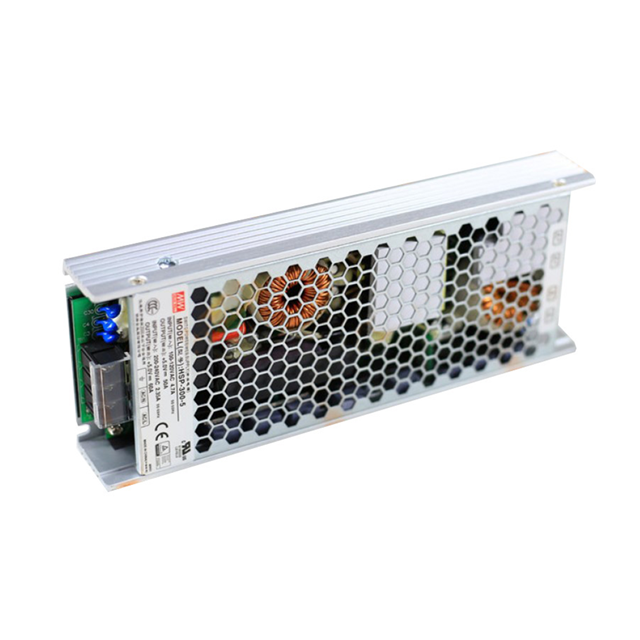

MEANWell HSP-300-5 Power transformer:
Output:
DC: 5V 60A 300W
Voltage tolerance: +- 3%
Setup Rise time: 2000MS, 100ms/230VAC
Input:
Voltage Range: 180-264VAC 254-370VDC
Frequency: 47-63HZ
Efficiency: 87%
Over load: 105-150% rated output power
Working Temp: -20 to +60 degree
Working Humidity: 20-90% RH
Authentication: UL CCC TUV CE CB EMC
Size: 210*81*31mm (L*W*H)
Weight: 800G
