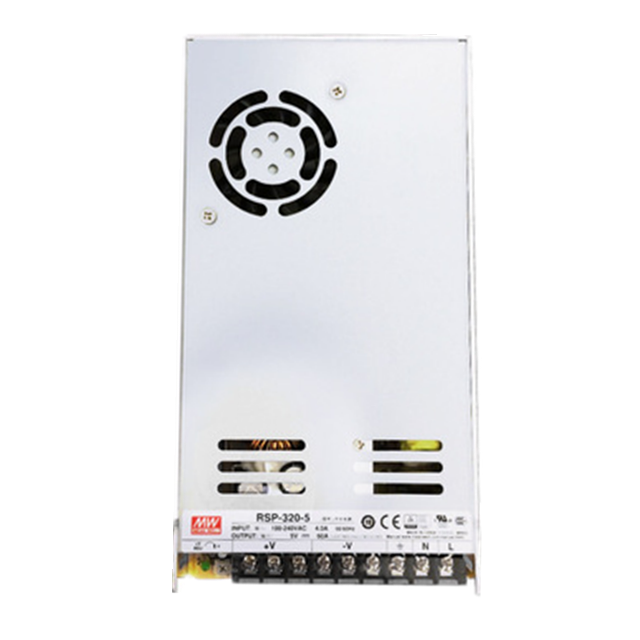

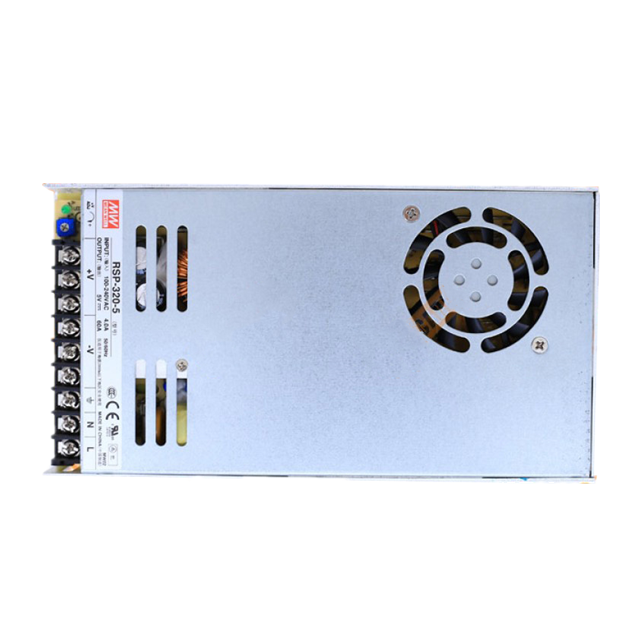

MEANWell RSP-320-5 Switching supply

MEANWell RSP-320-5 Switching supply  Features :

5V  60A 300W

Universal AC input / Full range

Built-in active PFC function, PF>0.95

High efficiency up to 90%

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC Fan with fan speed control function

1U low profile 30mm

Optional conformal coating models (RSP-320- CC) â–¡

LED indicator for power on

2 years warranty

Case:806 Size:215×115×30mm

AC input voltage range———88-132VAC/ 176-264VAC selected by switch

Input frequency———————————47-63Hz

AC inrush current——————————–Cold start Œ40A/230VAC

DC adjustment range—————————–±10% rated output voltage

Line regulation full load————————≤0.5%

Output over load protection——-110%-150% hiccup mode auto-recovery

Rise，hold up time——————–50mS 20mS at full load typical

Withstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min

Working temperature—– -10~+40C @100%-+60 @60% load

Storage temperature—– -20-+85C 20%~95%RH(non condensing)

Safety standards——Design refer to GB4943 UL60950-1,EN60950-1

EMC standards——- Design refer to GB9254 EN55022 class A

Cooling method———————Forced air cooing by built-in DC fan
