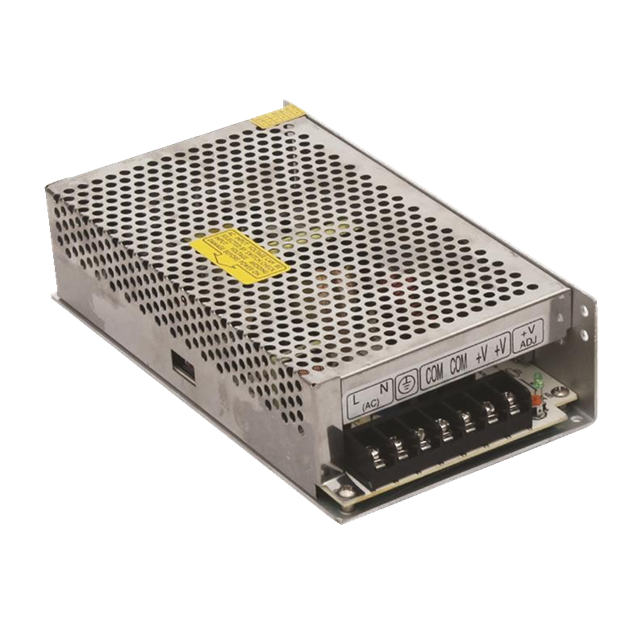

Regular Standard Display Power Supply  A-150-5

CZCL 5V 30A150W Regular Standard Display Power Supply  (A-150-5) Features :

Low cost high reliability

Built-in EMI filter

Low output ripple&noise

Protections Over load/Short circuit

1 year warranty

CASE:808; Size:199×110×50mm

AC input voltage range—————176-264VAC

Input frequency———————-47-63Hz

AC inrush current———————Cold start，30A/230VAC

DC adjustment range—————–±10% rated output voltage

Line regulation（full load）————≤0.5%

Output over load protection———-110%-150% shut off, AC recycle to re-start

Rise，hold up time——————50mS，20mS at full load（typical）

Withstand voltage——————I/P-O/P,I/P-FG:1.5KVAC, O/P-FG,0.5KVAC,1min

Working temperature—————10~+40 @ 100% +60 @ 60% load

Storage temperature————-   -20 ~+85 20%~95%RH(non condensing)

Safety standards——————Design refer to GB4943 UL60950-1,EN60950-1

EMC standards——————–Design refer to GB9254 EN55022 class A

Cooling method——————-Free air cooling convection
