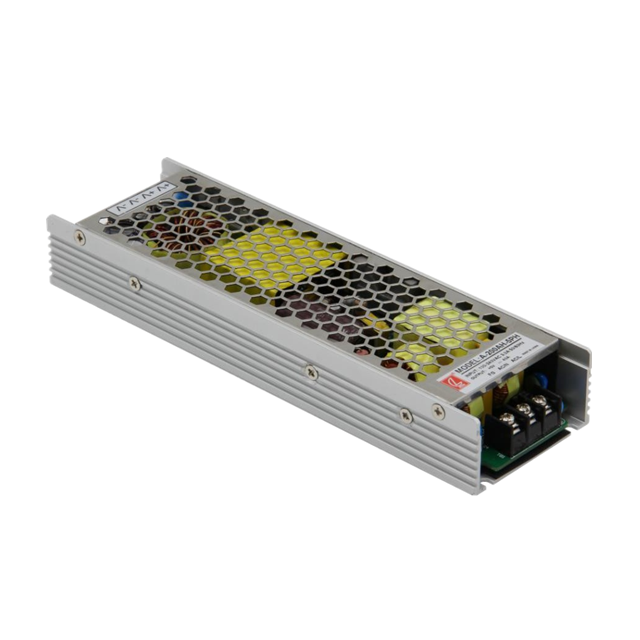

Regular Standard Display Power Supply A-200AH-5PH

Description

CZCL 5V 40A 200W Regular Standard Display Power Supply  (A-200AH-5PH) Features :

Full range AC input

Applicable for small pixel LED display

Built-in active PFC function.PF≥0.95

High efficiency up to 88.5%

Protections Over load/Short circuit

100% pass full load high temperature test

2 year warranty

CASE:845; Size:210×62×31mm

AC input voltage range—————90-240VAC

Input frequency———————-47-63Hz

AC inrush current———————Cold start,60A/230VAC

Line regulation(ˆfull load)————±1%

Output over load protection———-110%-150% Hiccup mode,auto-recovery

Rise,old up time——————100mS,10mS at full load

Withstand voltage——————I/P-O/P:3KVAC,I/P-FG:1.5KVAC, O/P-FG,0.5KVAC,1min

Working temperature————— -30℃~+60℃ refer to temperature derating curve

Storage temperature————-  -40℃~+100℃ 20%~95%RH(non condensing)

Safety standards——————Design refer to GB4943 UL60950-1,EN60950-1

EMC standards——————–Design refer to GB9254 EN55022 class A

Cooling method——————-Free air cooling convection
