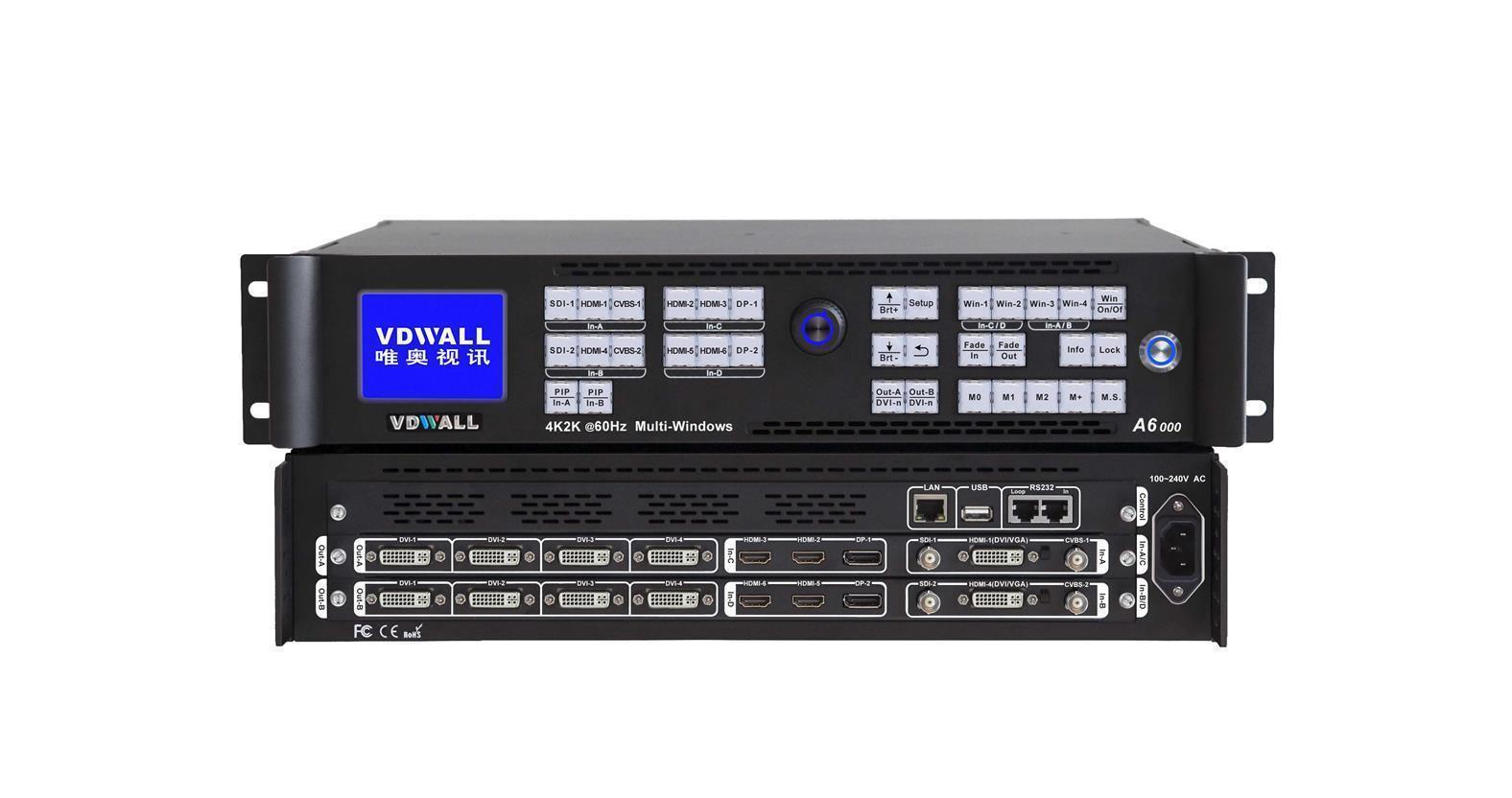

A6000

Inputs

- 12 input ports, support mixed SD(Standard Definition)、HD(High Definition)、UHD(Ultra High-Definition) input

- 6 UHD Inputs@ 4K2K_60Hz, maximum resolution up to 4096×2160@60Hz, including HDMI2.0 × 4 DP1.2 × 2

- Seamless switching between different inputs, no black, splash, jitters

Multi-window Processing

- 4k -4 windows 6 images display, random zoom in/out and overlay display

- 4K seamless switching and Fade-in / Fade-out switching

- Any in any out(AIAO) 4K image crop

- Accurate image quality adjustment

-  Image frame function, clearly identify different layer

- 16 preset display modes, seamless mode switching without black screen or blurred screen

Outputs

- Maximum 8 DVI outputs, synchronized joint split, driving capability up to 8K*2K

-  Any size and position of cropped image

- Accurate image quality adjustment realize uniform color of different screen batches

- 16 preset display modes, conveniently save/load

- Adaptive calculation aided splicing, auto calculate mosaic parameters according to the size and position of screen units

- User-defined output resolution, 8 Outputs reach to 17280 pixels in width or 12800 pixels in height. High efficient outputs utilization

Key Applications

- Real 4k display specialized for small pitches LED screen, LCD wall and projector splicing

- Designed for high-end occasions, such as stage performance, exhibition, convention hall, school auditorium, church, advertising, monitor and control center etc

Others

- Power on self test, convenient configuration data export and import

- Plug-in card design, customized input card and output card built in, convenient maintenance

- High stability and reliability, 7/24 operation
