Rental, Fixed

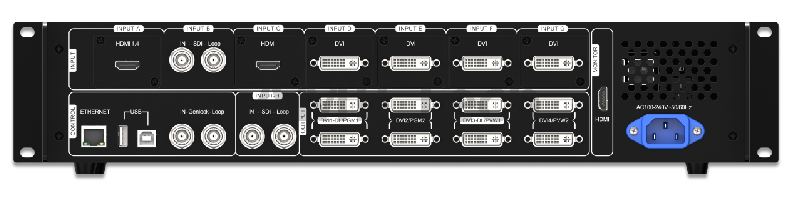

1) Compatible with industry-standard video input connectors in the market :
− DVI connector: 1920×1080@60Hz input;
− HDMI 1.3 connector: 1920×1080@60Hz input;
− 3G-SDI connector: 1920×1080@60Hz input;
− DP 1.1 connector: 4K×2K@30Hz input;
− HDMI 1.4 connector: 4K×2K@30Hz input.
2) 4 groups (2 connectors in each group) of DVI output connectors of a single J6 unit for mosaic output Each group includes a main connector and a backup connector. A maximum of 4 connectors can be used for mosaic output. The mosaic layout can be 4×1, 1×4 or 2×2. The maximum loading capacity can reach 9,200,000 pixels and the maximum mosaic width can be up to 15360 pixels.
3) Dual system modes The J6 supports both Splicer and Switcher modes, which can meet different application requirements.
4) Multiple window display The J6 supports up to six 4K×2K windows with random layout. Each window supports cross connector output.
5) HDMI connector for output monitoring:
− Supports monitoring of a single input source, PVW or PGM;
− Supports monitoring of all input sources, PVW and PGM;
− Supports displaying of input resolution and refresh rate;
6) Display control function Allows you to black out or freeze the screen by simply clicking one button.
7) EDID management Supports input resolution management for DVI, HDMI and DP connectors.
8) Transition effects In Splicer mode, the J6 supports setting of transition effect for source switching. In Switcher mode, the J6 supports setting of Take effect and effect duration.
9) AUX In Switcher mode, the J6 supports AUX setting.
10) BKG capturing The J6 supports capturing of input source and PGM, and the captured image can be used as BKG.
11) BKG settings The J6 supports both image BKG and pure color BKG. You can save at most 6 BKG images.
12) Input color, window color and output color adjustable.
13) Preset management You can create at most 32 custom presets and load the preset simply by clicking one button.
14) Window template management The J6 is built-in with 7 window templates. You can load one of the window templates to quickly lay out the windows.
15) Multiple operation modes You can operate the J6 via its front panel, the V-Can smart control software or C1 event controller.
16) Multiple J6 units controlled by one C1 unit You can perform operations, such as FTB, freeze or Take operation, to multiple J6 units on the C1.

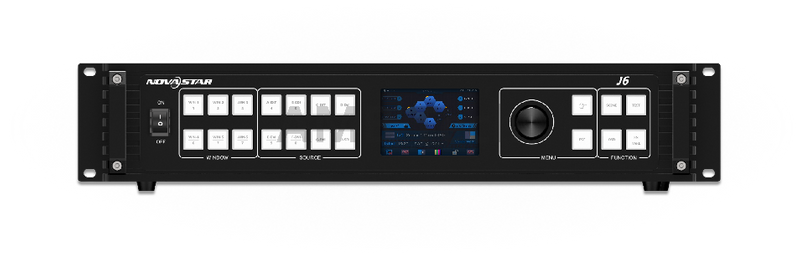

17) Visualized color LCD screen and distinct button indicators on front panel, simplifying system control operations.
