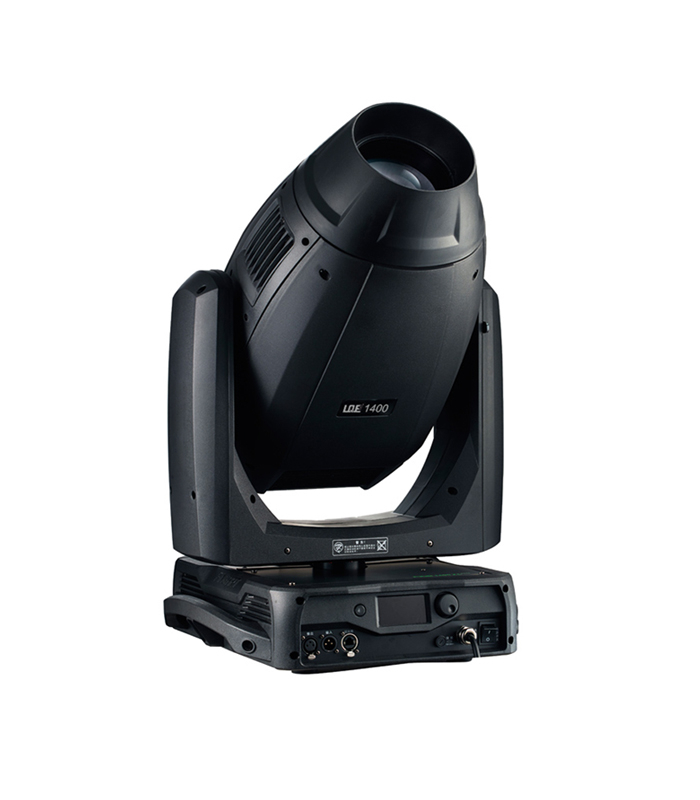

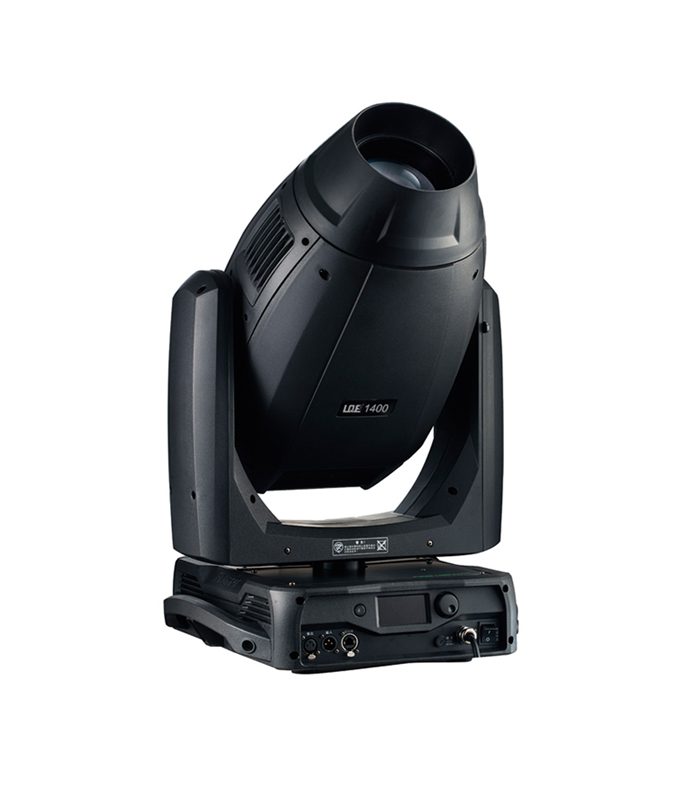

Cutting Computer Lamp

optical system
Light Source: OSRAM lok-it 1400-PS_Brilliant High Display Finger Lamp
Reflective Bowl: Italian Optical Coating Process
Outgoing lens: 140 mm
Total output of luminous flux: > 35000lm
Spot uniformity: > 80%
Zoom range: 8 ~50.
Chromogenic index: Ra>96，R9>94
Color system:
CMY non-polar color mixing, CTO color temperature linear adjustment (2700K-6500K), 7 color plates + white light, can achieve two-way color rainbow, color step gradient (linear movement), two-way rotation of color wheel, random color mode.
Patterns system:
A rotating pattern plate with five bidirectional rotating positioning patterns can achieve the effect of rotation, flow and dithering, the pattern wheel can be positioned, a dynamic wheel can cut in and out, can rotate bidirectionally, or can choose to customize the non-moving wheel to a fixed pattern plate (with nine patterns).
Cutting system: a set of omnidirectional graphics cutting system + 90 degree graphics orientation positioning, precise positioning of cutting slices
Effectiveness Configuration:
A rotating quadrilateral prism that can rotate bidirectionally
Independent atomization softening effect
Independent dimming device, 0-100% linear dimming
Independent stroboscopic device, stroboscopic speed is 1-13 times per second, pulsating, asynchronous, synchronous, random, slow, medium and fast stroboscopic mode selection
Fast electric aperture, 5-100% linear adjustment, with macro function and multi-effect change
Electron linear atomization, through electric focusing to achieve soft light atomization, constant spot angle linear adjustment of the depth of atomization
Shake head parameters:
Level: 540 degrees, accuracy 2.11 degrees/step, fine-tuning accuracy 0.008 degrees
Vertical: 270 degrees, accuracy 1.05 degrees/step, fine-tuning accuracy 0.004 degrees
Positioning system using non-contact magnetic rotary encoder horizontally and vertically
Control and programming
32 (Standard) / 35 (16Bit) / 42 (Extension) Three Channel Control Models
Control protocol: standard DMX512 protocol, Art-net Ethernet lighting control protocol and wireless DMX512 control (optional)
Menu display: 3.5 inch LCD screen, resolution 128 *64; Chinese and English languages can be switched freely, font can be reversed 180 degrees display; contactless roller operation
Electronic control technology:
Self-charging buffer battery, editing menu without electricity, energy saving and environmental protection, intelligent control of fan, temperature electronic sensing detection, DMX channel level monitoring, LCD screen lamp information query, bidirectional transmission of RDM data, non-contact magnetic rotary encoder positioning, signal feedback, absolute position when closed or CMY. Memory, DMX Offline Power Off Position Recovery
Power supply: 200-240V-50/60Hz electronic ballast
Input power: 1800W, power factor PF > 0.98
Size and weight:
Product Size: 444mm x 464mm x 777mm
Packaging size: 665mm * 520mm * 805mm
Net weight: 40.4 kg
Gross weight: 72.7 kg
Packing method: air box (packed in one package)
Protection Level: IP20
