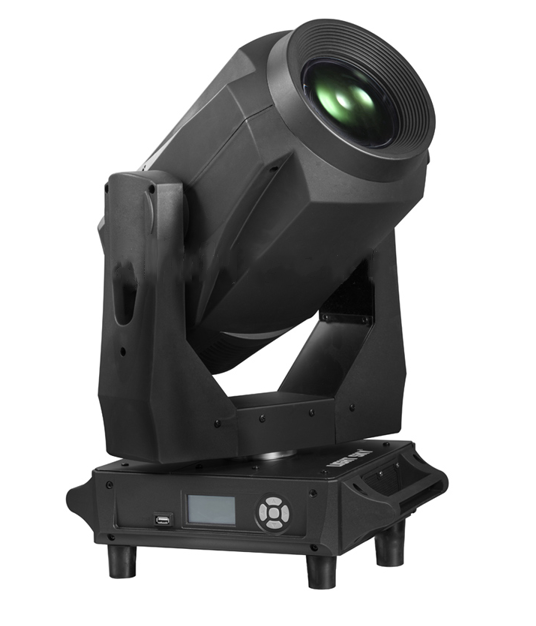

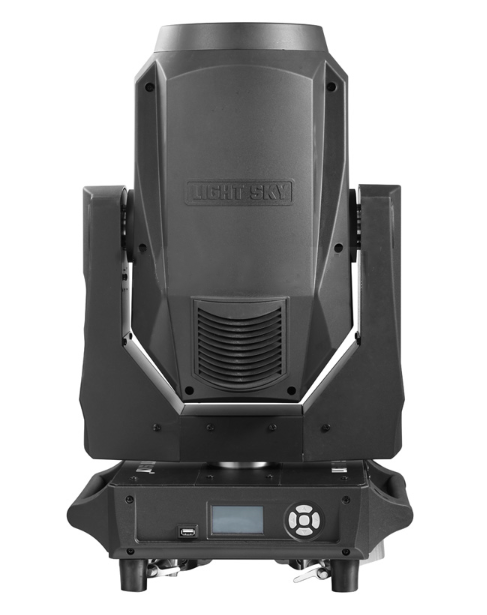

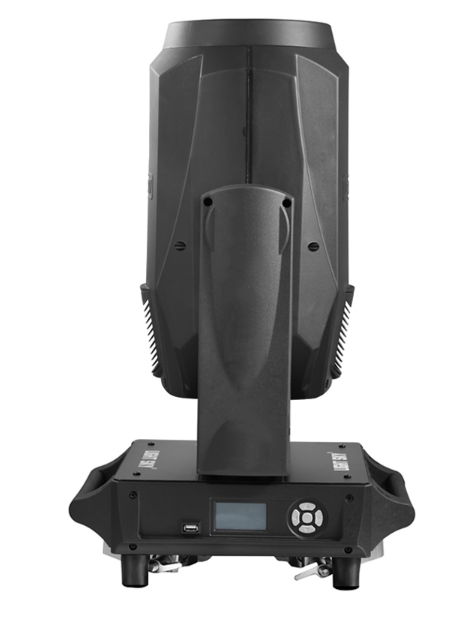

F400BSW LED MOVING HEAD

It’s a more professional and stable Moving Beam Spot Wash (3 in 1) Light with Intelligent upgrading USB interface, which is suitable for using in any occasions.It’s a more professional and stable Moving Beam Spot Wash (3 in 1) Light with Intelligent upgrading USB interface, which is suitable for using in any occasions.
Availability:
Quantity:
  • F400BSW

  • Rental


Power supplies available
100 V~240V~ 50/60Hz 5A
●Power :495W(220V/50Hz) PF0.98
●Lamp
●Brand:USHIO NSL360(31mmWD)
●Lamp power:360W
●Colour temperature; 6900K
●Average life:1500h
●Motors:
●12 ultra-quiet motors
●Inputs :DMX512
●Color
●14 colors + white
●Static gobo wheel
●11Gobo + 1 white + animation range
●Rotation Gobo Wheel
●7 rotating Gobos+open,Bi-direction flow water animation effect
●Prism
●12 facet round Prism(zoom from to 20 degree)
●Beam angle
●Beam Projection 0-1.5°,Spot Projection 1.5-20°
●Beem 0-1.5°,Spot 1.5-20°
●Wash angle
●8-60° independent Wash effect
●Focus and Lens
●High precision optical lens,linear adjustment
●Strobe
●Double lens strobe(0.5-9 times/second)
●Dimmer
●0-100% linear adjustment
●X/Y Travel(X/Y):540°/250°
●X/Y Resolution(X/Y):2.11°/0.98°
●X/Y Speed(X/Y):2.7S/1.6S
●Box Size:380X330X616MM
●N.W.: 22.5kg ,G.W.:25kg
●Flycase Size: 820X535X810MM
N.W.: 45kg ,G.W.:80.3kg
●IP set
●Automatic chang battery, IP could be set without electricity.
●Mobile APP
●Can be connected through the mobile  phone WIFI stage lighting,to understang the equipment information ,chang the device parameters and set the device address coding.
●Software upgrade
●Insert USB upgrade software
●Features
●Remote control lamp's swith function display light and lamp's using time.automaticallay adjust cooling fan's speed,Drop power when strobe lens.
●IP20 protection
Protected against the entry of solid bodies larger than 12mm.
● No protection against the entry of liquids.
●Safety Devices
●BIPOlar circuit breaker with thermal protection.
●Automatic break in power supply in case of overheating or failed operation of cooling system.
●Cooling
●Forced ventilation with axial fans.
●Structure
●Heat- proof plastic+ module pressing alloy materials.
●The vertical direction of the use of hidden locking device, convenient transportation and maintenance.
●CE Marking
●In conformity with the European Union Low Voltage Directive 2014/35/EU and Electomagnetic compatibility Directive 2014/30/EU.
