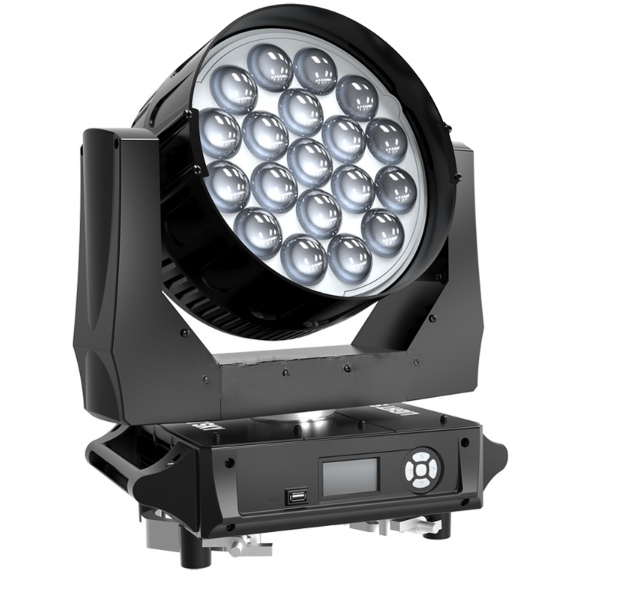

TL1940
Rental
l Power supplies available：
100V~240V~ 50/60Hz 6.5A
l Power：
632W，PF0.985

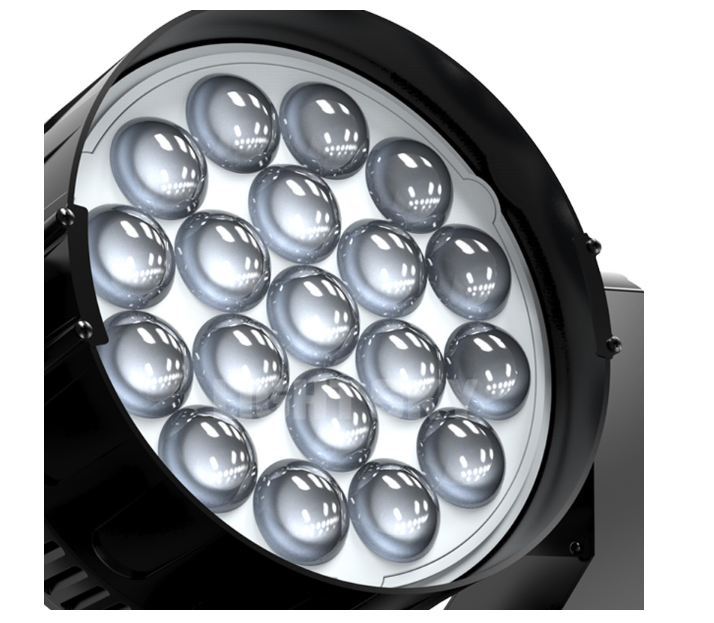

l LED chip/LED：
OSRAM 40W，RGBW 4 in 1 LED chip OSRAM 40W，RGBW
l LED QTY：19PCS.
l Average life:50000h
l Beam angle：Zoom function min.5°,max.55°.
l Color：RGBW macro color system.
l Strobe：1-30 times/ second electronic strobe and random strobe.
l Dimmer：65536 class dimmer
l Pan、Tilt：
X/Y Travel(X/Y): 540°/220°
X/Y Resolution(X/Y): .11°/0.98°
X/Y Speed(X/Y): 2.5S/1.0S
l Control Mode：
DMX512, RDM, Stand-alone mode , ArtNet(optional),Wireless DMX512(optional)
l Channel：
l Standard(13CH)Extended(23CH)
Simple Mode(9CH)
HSIC Mode(12CH)
l Focus and Lens
High precision combination lens, linear adjustment

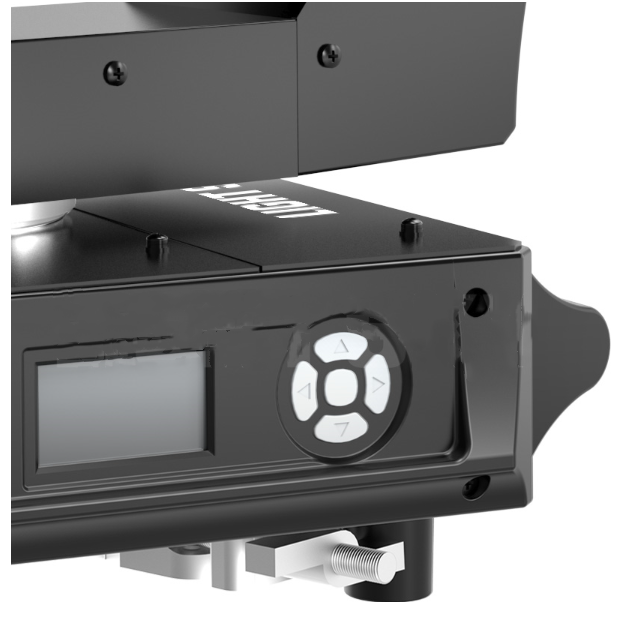

l Display Menu：
The display panel adopts a 2.0-inch LCD12864 LCD screen, which is used in both Chinese and English languages to facilitate quick operation and browse menus.
Display board can record device’s using time , show device’s temperature, channel data and software version .
Edit the procedure
l IP set
Automatic chang battery,IP could be set without electricity.

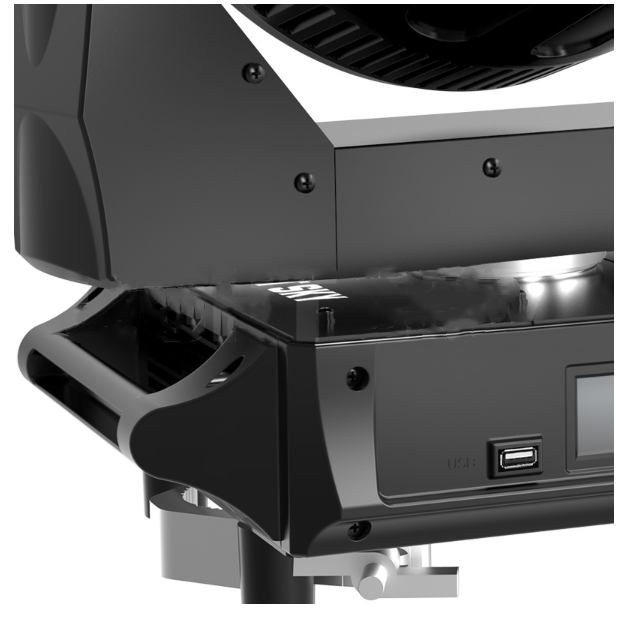

l Software upgrade
Insert USB upgrade software.
l IP20 protection
Protected against the entry of solid bodies larger than 12mm.
No protection against the entry of liquids.
l Safety Devices
BIPOlar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating or failed operation of cooling system.
l Cooling
Forced ventilation with axial fans.
l Outlooking ：
adopt ABS anti-fire plastic.
l Light size：425×300×506
l Box Size：500X580X375MM
N.W.: 21kg ，G.W.:25.8kg
l Flycase Size：
820X515X640MM
N.W: 42kg ，G.W：75kg
l Power supplies available：
100V~240V~ 50/60Hz 6.5A
l Power：
632W，PF0.985
l LED chip/LED：
OSRAM 40W，RGBW 4 in 1 LED chip OSRAM 40W，RGBW
l LED QTY：19PCS.
l Average life:50000h
l Beam angle：Zoom function min.5°,max.55°.
l Color：RGBW macro color system.
l Strobe：1-30 times/ second electronic strobe and random strobe.
l Dimmer：65536 class dimmer
l Pan、Tilt：
X/Y Travel(X/Y): 540°/220°
X/Y Resolution(X/Y): .11°/0.98°
X/Y Speed(X/Y): 2.5S/1.0S
l Control Mode：
DMX512, RDM, Stand-alone mode , ArtNet(optional),Wireless DMX512(optional)
l Channel：
l Standard(13CH)Extended(23CH)
Simple Mode(9CH)
HSIC Mode(12CH)
l Focus and Lens
High precision combination lens, linear adjustment
l Display Menu：
The display panel adopts a 2.0-inch LCD12864 LCD screen, which is used in both Chinese and English languages to facilitate quick operation and browse menus.
Display board can record device’s using time , show device’s temperature, channel data and software version .
Edit the procedure
l IP set
Automatic chang battery,IP could be set without electricity.
l Software upgrade
Insert USB upgrade software.
l IP20 protection
Protected against the entry of solid bodies larger than 12mm.
No protection against the entry of liquids.
l Safety Devices
BIPOlar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating or failed operation of cooling system.
l Cooling
Forced ventilation with axial fans.
l Outlooking ：
adopt ABS anti-fire plastic.
l Light size：425×300×506
l Box Size：500X580X375MM
N.W.: 21kg ，G.W.:25.8kg
l Flycase Size：
820X515X640MM
N.W: 42kg ，G.W：75kg
