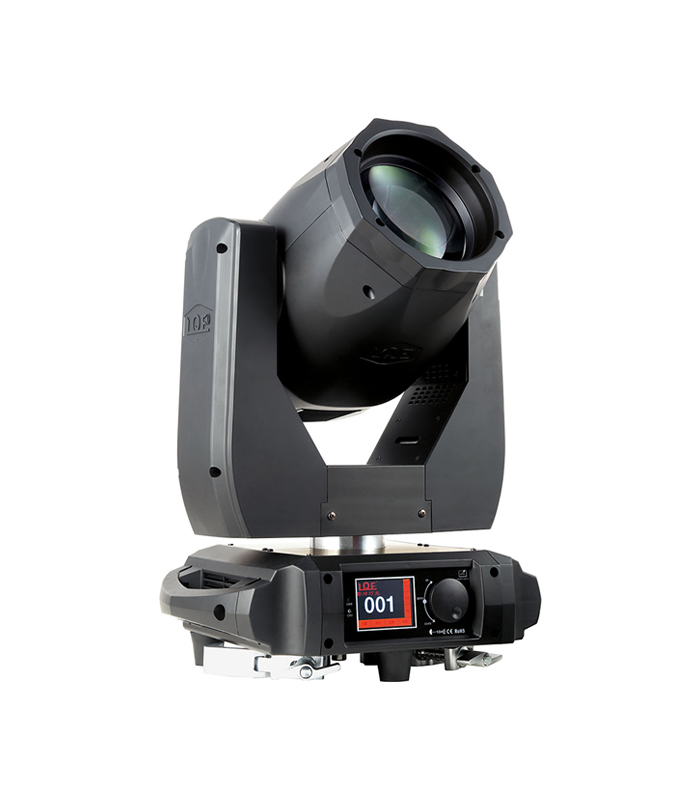

MHY350B
echnical parameters:
Power/signal:
Input voltage: AC100-240V-50/60Hz
Rated power: 480W
Power Interface: PowerCon in, out
Signal Interface: Three-core Canon Seat in and out
Light source:
Light Source: PHILIPS 350W
Life: 1500 hours
Functions:
Color temperature correction: 7000K
Channel mode: 2 channel modes (18/15 internationally labeled DMX512 channels)
Horizontal Scanning: 540 Degree (16bit/18bit precision scanning, three-phase motor drive, using non-contact magnetic rotary encoder positioning, compared with optical lotus root positioning accuracy doubled)
Vertical scanning: 270 degrees (16bit/18bit precision scanning, three-phase motor drive, using non-contact magnetic rotary encoder positioning, compared with optical lotus root positioning accuracy doubled)
Scanning system: fast, stable, quiet, with automatic error correction and reset function
Fixed colour: 11 colours (including four-colour pattern, more gorgeous with prism)+white light, half-colour effect, with two-way rotating rainbow effect, built-in macro function effect
Fixed pattern: 15 patterns + white circle, with pattern shaking, running water and other effects
Prism effect: Rotating 8 prisms, double-layer flower prism, superposition, positive and negative direction rotation, with prism macro function
Electrodeless Focusing: Electronic Focusing, Superfine Smooth Focus Adjustment
High-speed stroboscopic: The highest frequency can be 13 times per second, and random stroboscopic and pulse stroboscopic can be selected.
Linear dimming: 0-100% linear dimming
Beam angle: 0-2 degrees
Atomization effect: Independent nebulized lens, transmittance greater than 90%, light spot soft and natural
Show:
3.0 inch 16 megapixel touch color LCD display, can be displayed in Chinese and English, screen 180 degree reverse display, with lamp life expiration lamp change prompt function, internal sensor information display, manual control spot correction, reset and other functions, display lamp, lamp use time.
Other functions:
Automatic over-heat protection: the input signal isolation protection function ensures stable signal transmission, non-interference, high temperature automatic protection, intelligent induction temperature is too high when the bulb is automatically closed to make the lamp cool and then open the bulb, to ensure the safe use of the lamp; the panel has built-in batteries, which can switch the address code at will; remote control of the bulb switch, reset and other parameters.
Automatic Error Correction: Photoelectric Reset System is used for horizontal and vertical alignment. Occasional errors can be automatically retrieved and reset.
Other functions: remote control bulb switch, reset
Physical parameters:
Appearance of products: ABS plastics + moulding alloy material with high temperature resistance
Protection Level: IP20
Working environment: 0-40 C
Product size (mm): L387 *W293 *H559
product weight: 15KG (including lamp hook)
