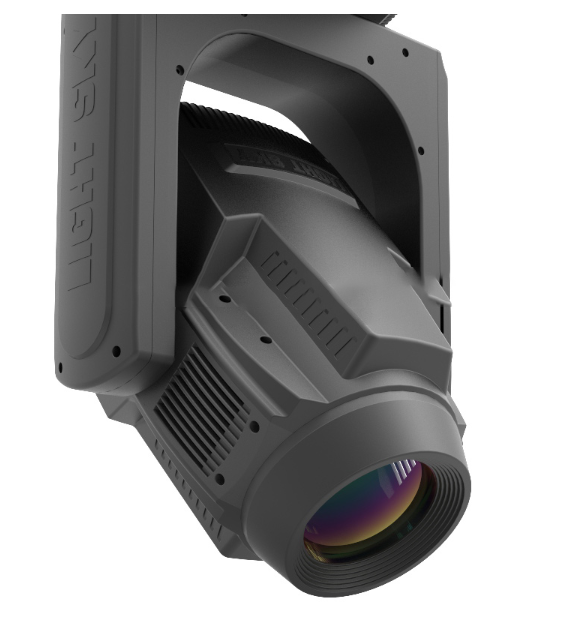

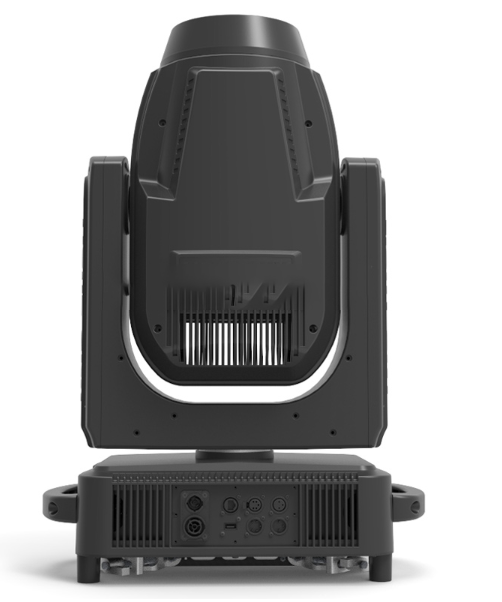

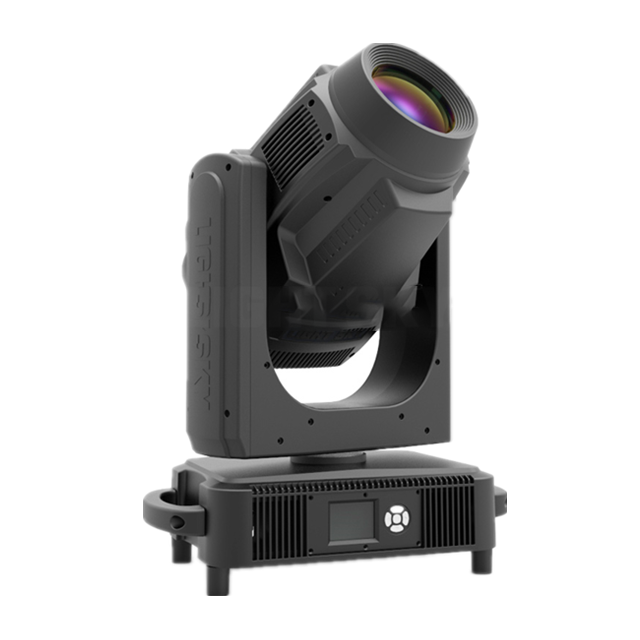

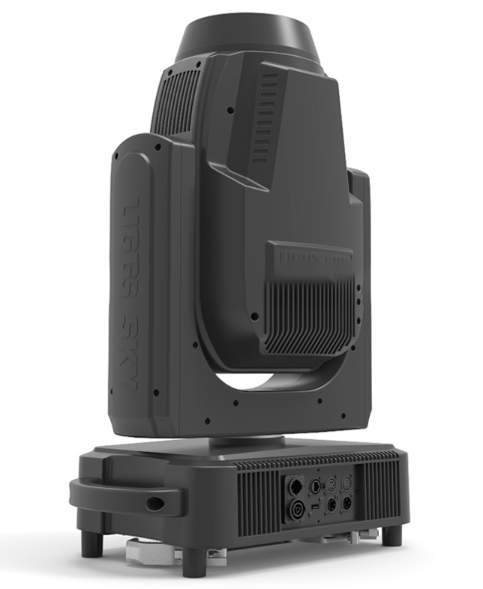

E500P
Rental
l Power supplies available
l AC100-240V∽，50/60Hz
l 190-240V/4.5A; 100-125V/8.5A
l Rated power: 630W PF 0.982
l Light source
l 360W white light LED module
l Light source power：360W
l Colour temperature 7800K
l Average life:50000h
l Motors:30 ultra-quiet motors，
l Channle: Standard channel:39CH; Extension channel:54CH
l Protocols: DMX-512, RDM, Art-Net
l Color wheel: 8 colors + white, Bi-direction rainbow effect
l Color mixing system: Linear CMY+CTO color mixing system
l Enhance CRI color rendering：Can increase to 85 the above
l Static gobo wheel : φ138 9Gobo + 1 white + animation
l Rotation Gobo Wheel
l 7 rotating Gobos + white,Bi-direction flow water animation effect，Design size: inside diameter 17, outside diameter 22.9 .
l Framing Shutters System：A cutting module that can freely transform from eight to four pieces.
l The aperture：5-100% linearly adjustable with macro.
l Strobe:1-25 times/second
l Dimmer: Electronic dimmer，0-100％ linear adjustment.
l Prism: Prism+16 double Prism+multi combination effect
l Beam angle：5°-40°
l Frost: 1° and 10° two levels of atomization
l Focus and Lens :φ127High precision optical lens, linear adjustment
l X/Y Travel(X/Y)：Pan movement 540°，Tilt movement 270°
l X/Y Resolution(X/Y)：2.11°/1.05°
l X/Y Speed(X/Y)：2.7S/2.1S
l Software upgrade: Insert USB upgrade software
l Display: Display panel adopts 2.8 inch resistive color touch screen with good pressure sensitivity
l Chinese and English languages can be switched freely，menu available to display 180°reversely
l IP set: Automatic chang battery,IP could be set without electricity.
l Features
l Input signal isolation: guarantees stable signal transmission without interference。
l Advanced Art-Net function
l IP20 protection
l Safety Devices: BIPOlar circuit breaker with thermal protection.
l Cooling: Forced ventilation with axial fans.
l Structure: Heat-proof plastic+module pressing alloy materials.
l CE Marking
l In conformity with the European Union Low Voltage Directive 2014/35/EU and Electomagnetic compatibility Directive 2014/30/EU.
l The vertical direction of the use of hidden locking device, convenient transportation and maintenance.
l Lighting Size：510X300X731MM
l Box Size：810X580X395MM
l N.W.33.2kg ，G.W.37.5kg
l Flycase Size 620X580X850MM
l N.W.33.2kg ，G.W.66.5kg
l Power supplies available
l AC100-240V∽，50/60Hz
l 190-240V/4.5A; 100-125V/8.5A
l Rated power: 630W PF 0.982
l Light source
l 360W white light LED module
l Light source power：360W
l Colour temperature 7800K
l Average life:50000h
l Motors:30 ultra-quiet motors，
l Channle: Standard channel:39CH; Extension channel:54CH
l Protocols: DMX-512, RDM, Art-Net
l Color wheel: 8 colors + white, Bi-direction rainbow effect
l Color mixing system: Linear CMY+CTO color mixing system
l Enhance CRI color rendering：Can increase to 85 the above
l Static gobo wheel : φ138 9Gobo + 1 white + animation
l Rotation Gobo Wheel
l 7 rotating Gobos + white,Bi-direction flow water animation effect，Design size: inside diameter 17, outside diameter 22.9 .
l Framing Shutters System：A cutting module that can freely transform from eight to four pieces.
l The aperture：5-100% linearly adjustable with macro.
l Strobe:1-25 times/second
l Dimmer: Electronic dimmer，0-100％ linear adjustment.
l Prism: Prism+16 double Prism+multi combination effect
l Beam angle：5°-40°
l Frost: 1° and 10° two levels of atomization
l Focus and Lens :φ127High precision optical lens, linear adjustment
l X/Y Travel(X/Y)：Pan movement 540°，Tilt movement 270°
l X/Y Resolution(X/Y)：2.11°/1.05°
l X/Y Speed(X/Y)：2.7S/2.1S
l Software upgrade: Insert USB upgrade software
l Display: Display panel adopts 2.8 inch resistive color touch screen with good pressure sensitivity
l Chinese and English languages can be switched freely，menu available to display 180°reversely
l IP set: Automatic chang battery,IP could be set without electricity.
l Features
l Input signal isolation: guarantees stable signal transmission without interference。
l Advanced Art-Net function
l IP20 protection
l Safety Devices: BIPOlar circuit breaker with thermal protection.
l Cooling: Forced ventilation with axial fans.
l Structure: Heat-proof plastic+module pressing alloy materials.
l CE Marking
l In conformity with the European Union Low Voltage Directive 2014/35/EU and Electomagnetic compatibility Directive 2014/30/EU.
l The vertical direction of the use of hidden locking device, convenient transportation and maintenance.
l Lighting Size：510X300X731MM
l Box Size：810X580X395MM
l N.W.33.2kg ，G.W.37.5kg
l Flycase Size 620X580X850MM
l N.W.33.2kg ，G.W.66.5kg
