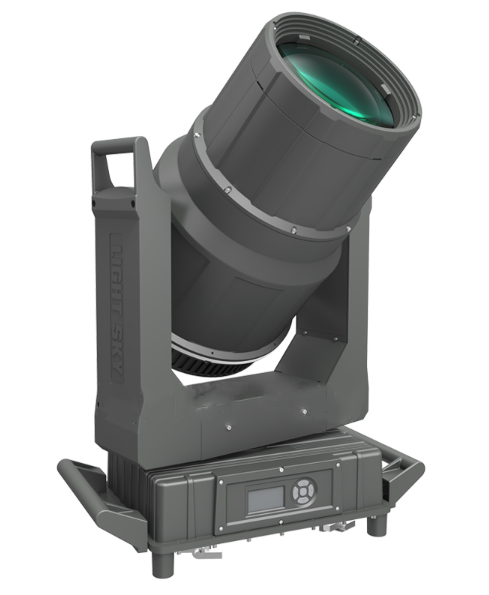

IP66 MOVING HEAD

● Power supplies available

 100V~240V~ 50/60Hz 5A

● Power

650W PF0.985

● Lamp

Brand：USHIO NSL450

Lamp power：450W

● Colour temperature：6900K

● Average life：1500h

● Motors

15 ultra-quiet motors

● Inputs：DMX512

● Channel：17CH

● Color

14 colors + white

● Color mixing system

CMY color System

● Static gobo wheel

11Gobo + 1 white + 3 animation range Bi-direction flow water animation effect

● Prism

8 Prism+16 double Prism+multi combination effect

● Beam angle：1.8°

● Wash angle

6-45° independent Wash effect

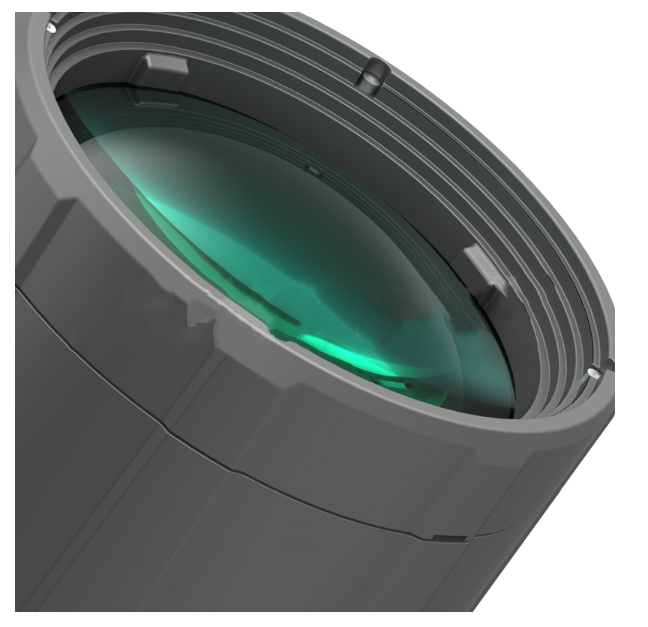

● Focus and Lens

High precision optical lens, linear adjustment

● Strobe

Double lens strobe(0.5-9 times/second)

● Dimmer

0-100％ linear adjustment

● X/Y Travel(X/Y)：540°/240°

● X/Y Resolution(X/Y)：2.11°/0.98°

● X/Y Speed(X/Y)：2.7S/1.6S

● Lighting Size：509X320X742MM

● Box Size：810X580X395MM

N.W.：34.5kg ，G.W.：39kg

● Flycase Size：

640X620X825MM

N.W.：34.5kg ，G.W.：69kg

● IP set

Automatic chang battery,IP could be set without electricity.

● Software upgrade

Insert USB upgrade software.

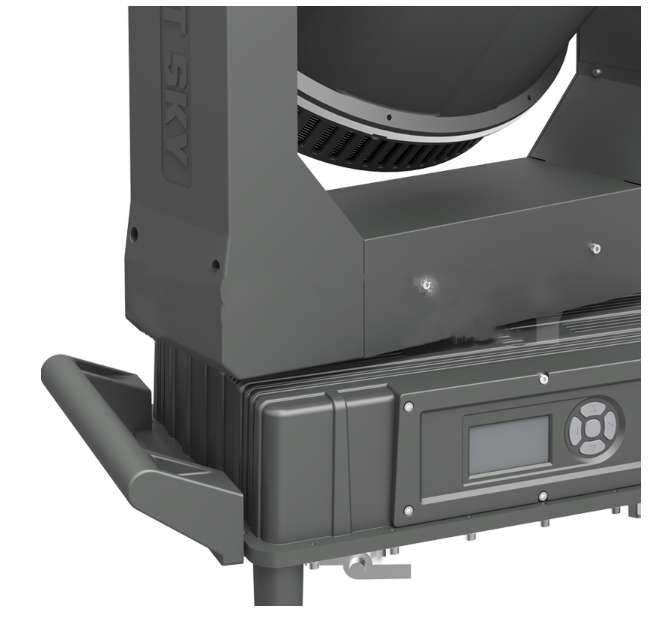

● Display Menu：

The display panel adopts a 2.0-inch LCD12864 LCD screen, which is used in both Chinese and English languages to facilitate quick operation and browse menus.

Display board can record device’s using time , show device’s temperature, channel data and software version .

● Features

Remote control lamp's swith function display light and lamp's using time.automaticallay adjust cooling fan's speed,Drop power when strobe lens.

● IP RATE:IP66

● Safety Devices

BIPOlar circuit breaker with thermal protection.

Automatic break in power supply in case of overheating or failed operation of cooling  system.

● Cooling

Forced ventilation with axial fans.

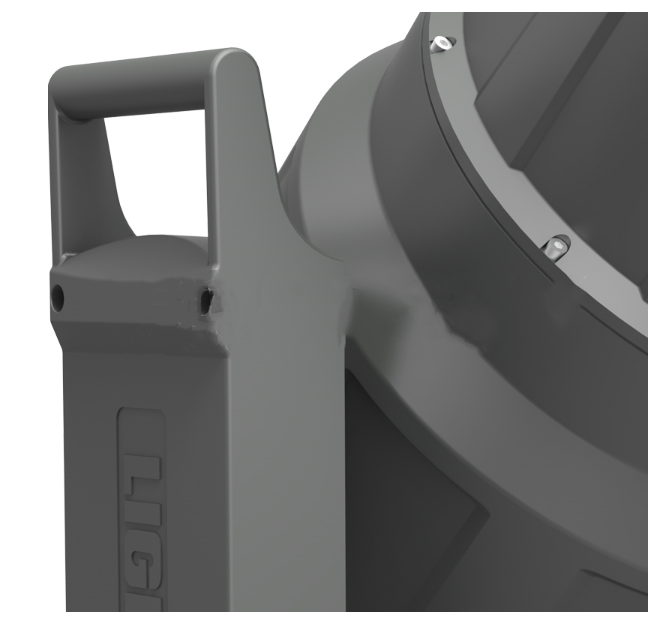

● Structure

Fully aluminum alloy Die-casting case, patent, fashion, simple & laconic.

The vertical direction of the use of hidden locking device,convenient transportation and maintenance.

● CE Marking

In conformity with the European Union Low Voltage Directive 2014/35/EU and Electomagnetic compatibility Directive 2014/30/EU
